Brocade XBR-G6MIDR12PTPOD-32G BR-MIDRMFEB-01-Z software license for HD-G620-24-32G switch
Brocade XBR-G6MIDR12PTPOD-32G BR-MIDRMFEB-01-Z software license for HD-G620-24-32G switch
read more
24/64 ports Brocade G720 Switch G720-64-32G-F Fiber Optical Switch
The Brocade G720 Switch is a Gen 7 switch with 64 ports in an ultra-dense 1U design. Delivering unmatched 64G performance and 50% lower latency compared to the previous generation,
read more
Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers
Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers
read more
Compatible Mikrotik XS+2733LC15D SFP 1.25G FR Single Mode 1270nm+ 1330nm 15km Optical Transceivers
Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28
read more
Compatible Mikrotik XS+2733LC15D 10G QSFP+ SR Optical Transceivers
Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Optical Transceivers
read more
12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-24-16GR/BR6510-24-16GR/6505-24-0-R Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01
12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-12-8GR/BR6510-24-8GR Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01/57-1000487-01/57-0000089-01/57-1000488-01/57-1000262-01/57-1000489-01/XBR-000458/XBR-000258/XBR-000499/XBR-000498
read more

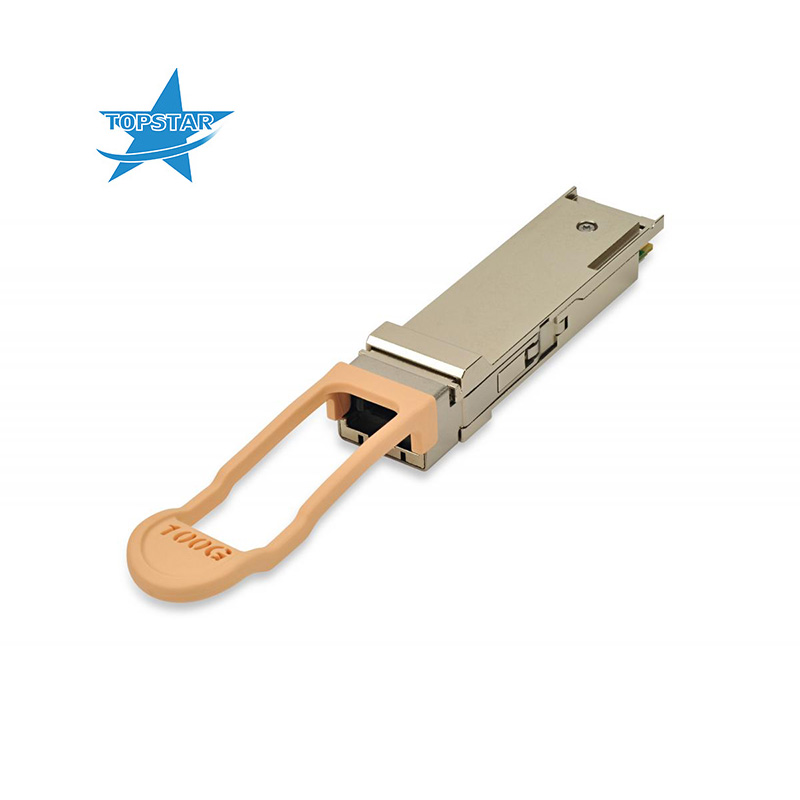

Compatible FTLC9558REPM 100GBASE-SR4 Parallel MMF 100m Gen3 QSFP28 Optical Transceiver

item no.:
100G QSFP28 SR4 100m
brand:
Finisar
Warranty:
3 Years
Condition:
New
Temperature:
0-70
Data Rate:
100G
Distance:
100m
Wavelength:
850nm
Connector:
MPO (MTP12)

contact now

product details

Product Description：

Distance:100 m
Data Rate (max):103.1 Gb/s
Protocol:25G Ethernet Compliant 100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP12)
Wavelength:850nm Band

Feature：

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation <2.5W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 Multimode Fiber (MMF)
4x25Gb/s 850nm VCSEL-based transmitter
4x25G electrical interface
Single MPO12 receptacle
I2C management interface
