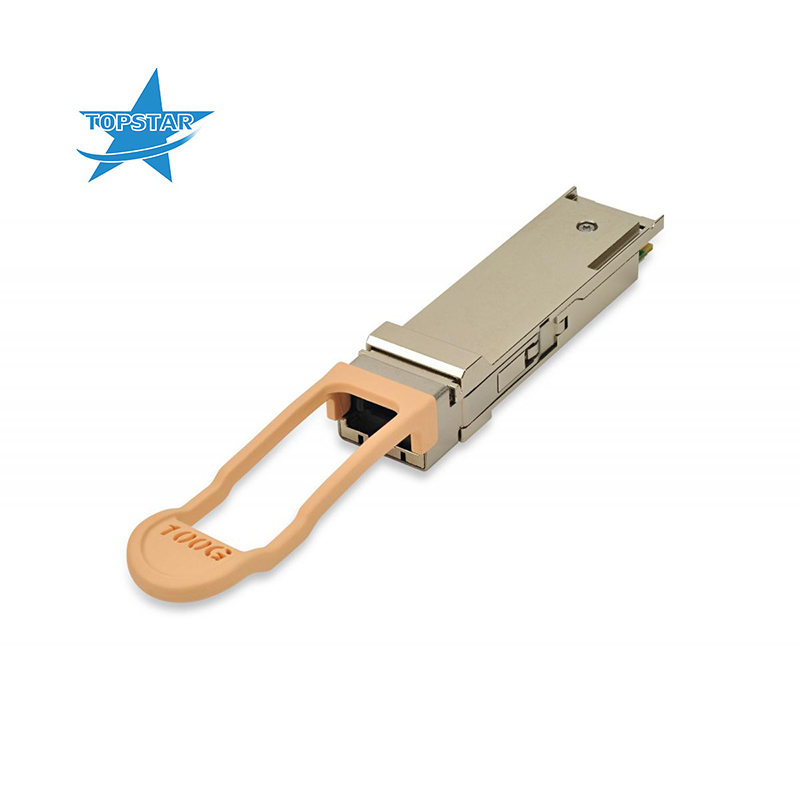

Compatible Finisar 850nm 128G Fibre Channel Parallel 100m MMF MPO Gen2 QSFP28 Optical Transceiver

item no.:
128G QSFP28 SR4 100m
brand:
Finisar
Warranty:
3 Years
Condition:
New
Temperature:
0-70
Data Rate:
112.2 Gb/s
Distance:
100m
Wavelength:
850nm
Connector:
MPO (MTP12)

contact now

product details

Product Description:

Distance:100 m
Data Rate (max):112.2 Gb/s
Protocol:8x Fibre Channel Compliant 16x Fibre Channel Compliant 32x Fibre Channel Compliant 128x Fibre Channel Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP12)
Wavelength:850nm Band

Product Feature:

Hot-pluggable QSFP28 form factor
Supports up to 112.2Gb/s aggregate bit rate
Power dissipation <2.5W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 Multimode Fiber (MMF)
4x28Gb/s 850nm VCSEL-based transmitter
4x25G electrical interface
Single MPO12 receptacle
I2C management interface
