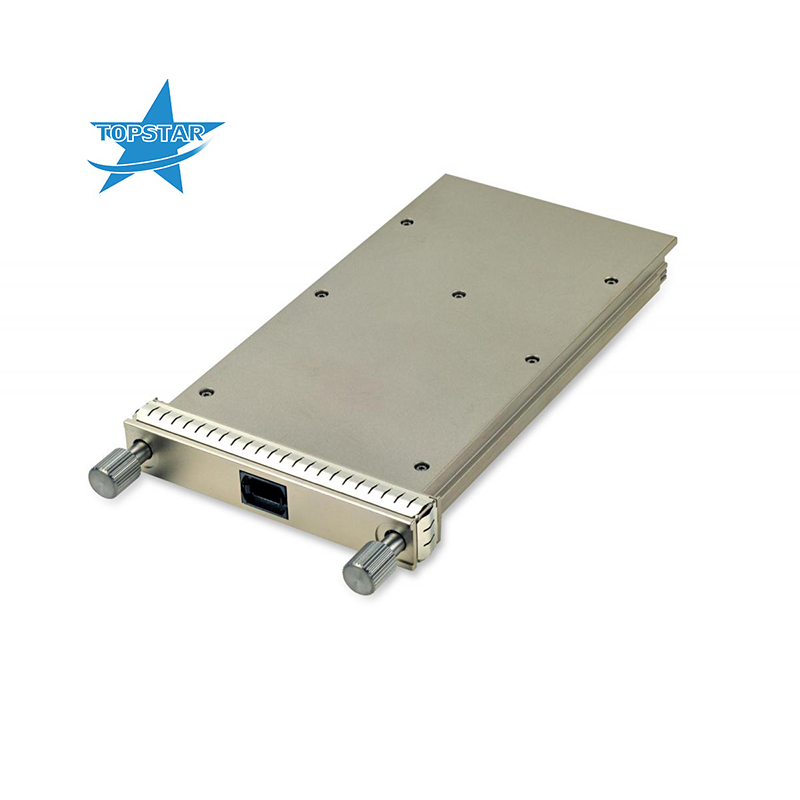

Compatible Finisar FTLC8281xCNM 100GBASE-SR10 and OTN Multirate 100m CFP Optical Transceiver

item no.:
100G CFP LC 100m
brand:
Finisar
Warranty:
3 Years
Condition:
0-75
Temperature:
New
Data Rate:
103.1G
Distance:
100m
Wavelength:
850nm
Connector:
MPT

contact now

product details

Description:

Distance:100 m
Data Rate (max):112 Gb/s
Protocol:100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP24)
Wavelength:850nm Band

Feature:

Hot-pluggable CFP form factor
Supports 103.1Gb/s (FTLC8281RCNM) or dual-rate including 112 Gb/s (FTLC8281SCNM) aggregate bit rates
Power dissipation < 12W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Uncooled 10x10Gb/s 850nm transmitter
CAUI electrical interface
Single MPO24/MTP24 receptacle
MDIO management interface
