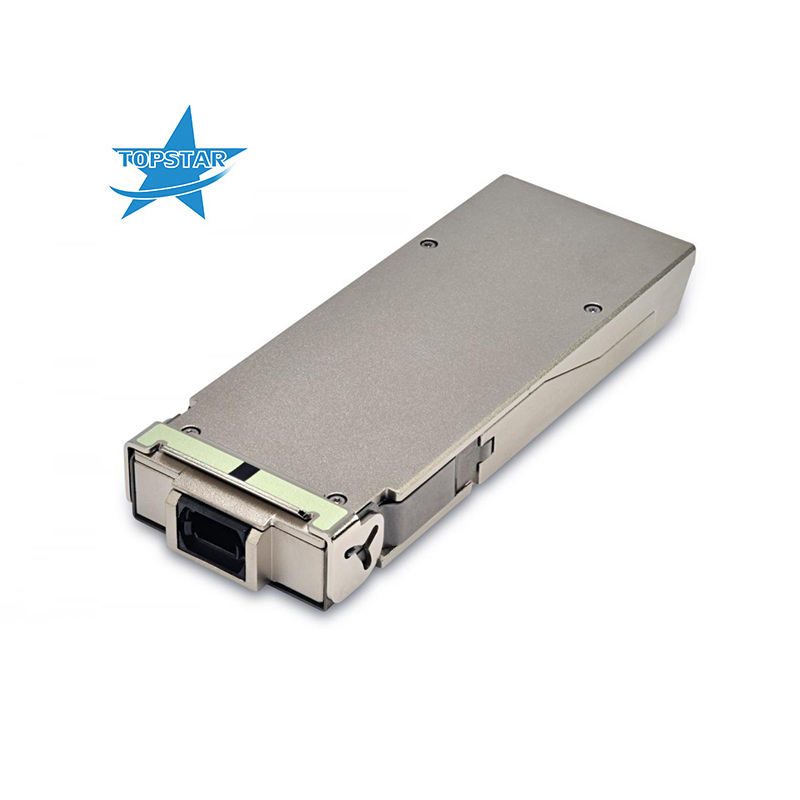

Compatible Finisar FTLC8221SCNM 100GBASE-SR10 and OTN Multirate 100m CFP2 Optical Transceiver

Compatible Finisar FTLC8221SCNM 100GBASE-SR10 and OTN Multirate 100m CFP2 Optical Transceiver

  • item no.:

    100G CFP2 MPT 100m
  • brand:

    Finisar
  • Warranty:

    3 Years
  • Condition:

    New
  • Temperature:

    0-70
  • Data Rate:

    112 Gb/s
  • Distance:

    100m
  • Wavelength:

    850nm
  • Connector:

    MPT
product details

Product Description:


Distance:100 m
Data Rate (max):112 Gb/s
Protocol:OTN OTU4 Compliant 100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band

Product Feature:


Hot-pluggable CFP2 form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
Power dissipation <4W
RoHS-6 compliant
Single 3.3V power supply
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Uncooled 10x10Gb/s 850nm transmitter
CPPI electrical interface
Single MPO24 receptacle
MDIO management interface
Tx/Rx optical power monitoring functionality
Commercial case temperature range: 0°C to 70°C
