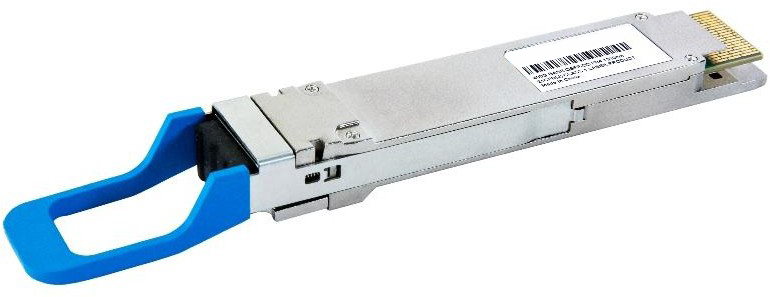

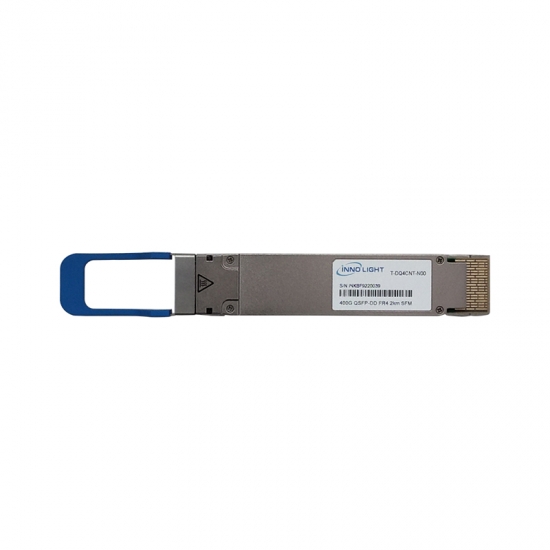

Compatible Finisar T-DQ4CNT-N00 TOP-400G QSFP-DD 400Gb/s QSFP-DD FR4 2km SMF Optical Transceiver
item no.:
400G QSFP-DD FR4 2KMbrand:
Top-TransWarranty:
1 YearCondition:
NewTemperature:
0-70Data Rate:
400GDistance:
2kmWavelength:
CWDM4Connector:
LCFeatures
· QSFP-DD MSA compliant
· 4 CWDM lanes MUX/DEMUX design
· 100G Lambda MSA 400G-FR4 Specification compliant
· Up to 2km transmission on single mode fiber (SMF) with FEC
· Operating case temperature: 0 to 70oC
· 8x53.125Gb/s electrical interface (400GAUI-8)
· Data Rate 106.25Gbps (PAM4) per channel.
· Maximum power consumption 12W
· Duplex LC connector
· RoHS compliant
Applications
· Data Center Interconnect
· 400G Ethernet
· Infiniband interconnects
· Enterprise networking
| P/N | Product Description | Data Sheet | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T-DQ8FNS-N00 | QSFP-DD SR8 | 400G | 850nm VCSEL | PIN | -6 | 4 | -7.9 | 4 | 12 | 100m | 0~70 | |
| T-DP4CNH-N00 | QSFP-DD DR4 | 400G | 1310nm EML | PIN | -2.9 | 4 | -5.9 | 4 | 12 | 500m | 0~70 | |
| T-DP4CNT-N00 | QSFP-DD DR4+ | 400G | 1310nm EML | PIN | -2.4 | 4 | -6.4 | 4.5 | 12 | 2km | 0~70 | |
| T-DQ4CNT-N00 | QSFP-DD FR4 | 400G | EML CWDM4 | PIN | -3.3 | 3.5 | -7.3 | 3.5 | 12 | 2km | 0~70 | |
| T-DQ4CNL-N00 | QSFP-DD LR4 | 400G | EML CWDM4 | PIN | -1.4 | 4.5 | -7.7 | 4.5 | 12 | 10km | 0~70 | |
| C-DQ8FNMxxx-H00 | QSFP-DD AOC | 400G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 12.0 (each QSFP-DD) | 3~100m | 0~70 | |
| T-DB8FNS-N00 | QSFP-DD SR4.2 | 400G | 850nm & 908nm VCSELs | PIN | -6.2 | 4 | -8.2 | 4 | 12 | 100m | 0-70C |
