item no.:
QSFP-40G-SR4 150mbrand:
FinisarCondition:
NewTemperature:
0-70Data Rate:
40GDistance:
150mWavelength:
850nmConnector:
MPOCompatible Brand QSFP-40G-SR4 Optical Module 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO Transceiver

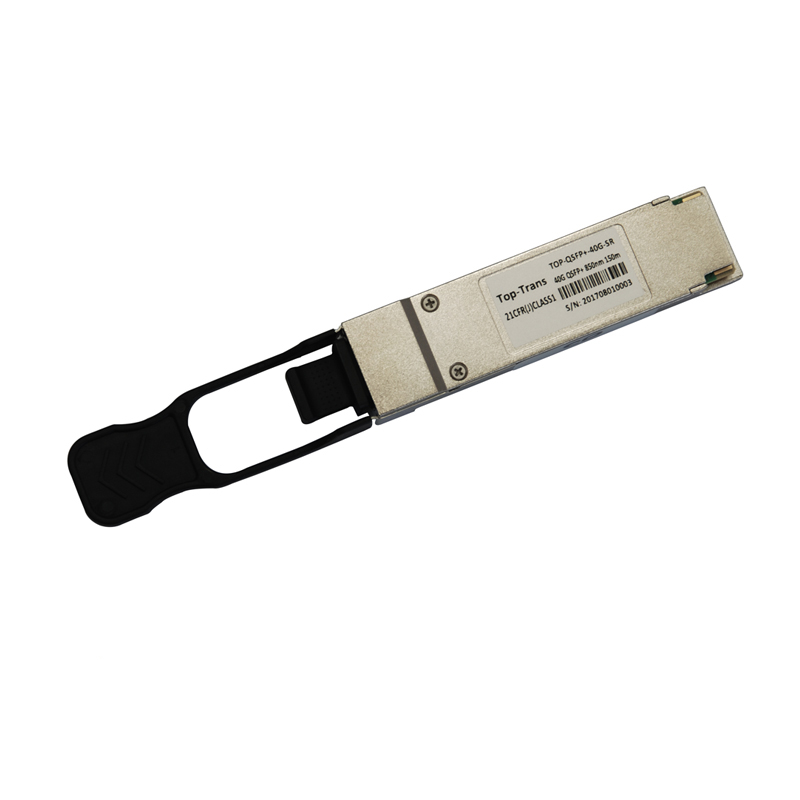

QSFP-40G-SR4 Optical Module
The QSFP-40G-SR4 is a high-performance optical transceiver module designed for use in high-speed data communication and networking applications. As part of the Quad Small Form-factor Pluggable (QSFP) family, this module delivers reliable and efficient optical connectivity for demanding network environments.
Key Features:
Form Factor: The QSFP-40G-SR4 adheres to the QSFP standard, offering a compact and hot-swappable design suitable for various networking equipment.
Data Rate: Supporting a data rate of 40 Gbps, this optical module is optimized for high-bandwidth applications.
Wavelength: Operating at specific wavelengths, typically around 850nm, the module is designed for short-range applications, particularly in multimode fiber environments.
Connector: Equipped with MTP/MPO connectors, the QSFP-40G-SR4 enables seamless connectivity with multimode fiber optic cables.
Transmission Distance: Designed for short-range transmission, typically up to 100 meters over OM3 multimode fiber and up to 150 meters over OM4 multimode fiber.
Channel Configuration: Utilizing four parallel channels for bidirectional communication, the QSFP-40G-SR4 ensures efficient data transfer.
Digital Diagnostics (DDM): The module may incorporate Digital Diagnostics Monitoring functionality, providing real-time monitoring of critical parameters such as optical power, temperature, and voltage.
Hot-Pluggable: Supporting hot-pluggable capability, the QSFP-40G-SR4 facilitates ease of installation and replacement without disrupting network operations.
Applications:
The QSFP-40G-SR4 optical module is commonly used in:
Data Center Networks: Facilitating high-speed connections between switches, routers, and servers in data center environments.
Enterprise Networks: Providing reliable and high-bandwidth connectivity in large-scale enterprise networks.
Telecommunications: Contributing to the development of high-performance telecommunications networks.
Note: For precise technical specifications, operational guidelines, and detailed performance characteristics, it's recommended to refer to the official datasheet provided by the module manufacturer.
The QSFP-40G-SR4 is a high-performance optical transceiver module designed for use in high-speed data communication and networking applications. As part of the Quad Small Form-factor Pluggable (QSFP) family, this module delivers reliable and efficient optical connectivity for demanding network environments.
