Finisar’s FTLC9551SEPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet, 128GFC and 4x28G OTN client links over multimode fiber. They are compliant with the QSFP28 MSA , 128GFC and IEEE 802.3bm 100GBASE-SR4 and CAUI-4 . Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2142. The transceiver is RoHS-6 compliant per Directive 2011/65/EU and Finisar Application Note AN-2038.
item no.:
FTLC9551SEPMlead time:
2-3 working daysproduct orgin:
Malaysiabrand:
Finisarshipping port:
Shenzhenpayment:
ex-wWarranty:
1 YearCondition:
NewTemperature:
0℃~70℃Data Rate:
100GDistance:
100mWavelength:
850nmConnector:
MPO

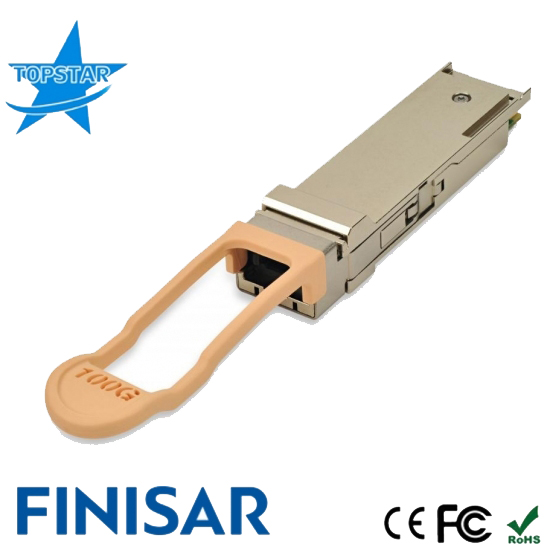

Finisar FTLC9551SEPM QSFP28 ONT OUT4/100GBASE-SR4 112.2Gb/s 850nm 100M OM4 MMF Transceiver
Finisar XCVR, QSFP28 4x 850NM Vcsel, MMF, Pull Tab, Mpo, RoHS Module
Product Fectures
Brand | Finisar |
Original Place | Malaysia |
Form Factor | QSFP28 |
Part Number | FTLC9551SEPM |
Datarate | 100G |
Distance | 100M |
Fiber Type |
dual Fiber |
Connector | MPO Connector |
Temperature | 0-70°C |
Warranty |
1 year |
Details
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s to 112.2Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 Multimode Fiber (MMF)
4x25Gb/s 850mm VCSEL-based transmitter
x25G electrical interface
Single MPO12 receptacle
I2C management interface
APPLICATIONS
100GBASE-SR4 100G Ethernet
128G Fibre Channel
4x28Gb/s Multimode OTN
