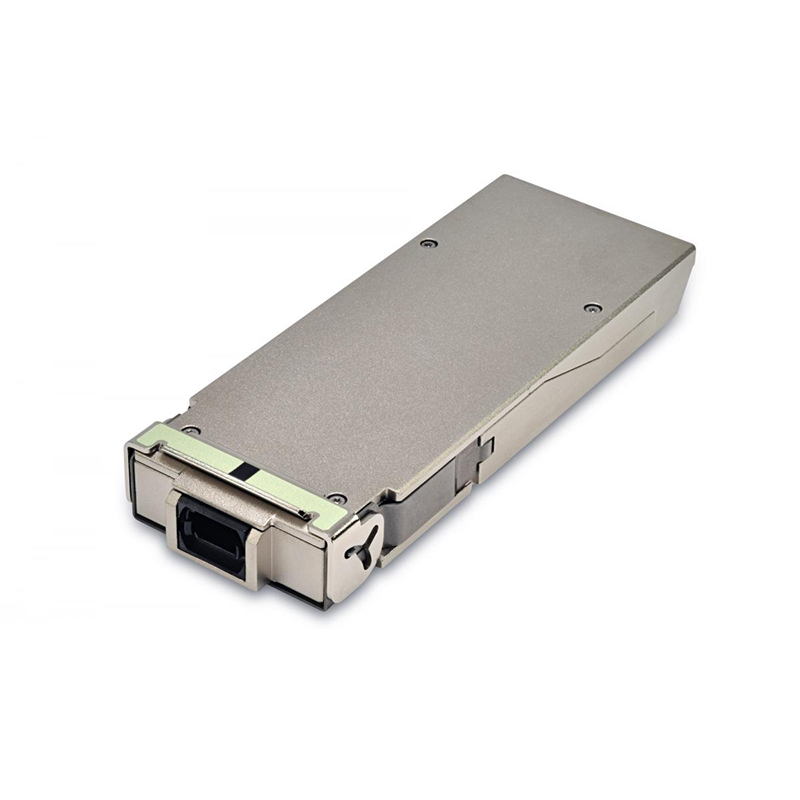

Used Finisar FTLC8221SCNM 100GBASE-SR10 and OTN Multirate 100m CFP2 Optical Transceiver

item no.:
100G CFP2 SR10 100m
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
0-70
Data Rate:
100G
Distance:
100m
Wavelength:
850nm
Connector:
MPO

contact now

product details

Product Description:

Distance:100 m
Data Rate (max):112 Gb/s
Protocol:OTN OTU4 Compliant 100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band

Feature:

Hot-pluggable CFP2 form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
Power dissipation <4W
RoHS compliant
Single 3.3V power supply
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Uncooled 10x10Gb/s 850nm transmitter
CPPI electrical interface
Single MPO24 receptacle
MDIO management interface
Tx/Rx optical power monitoring functionality
Commercial case temperature range: 0°C to 70°C
