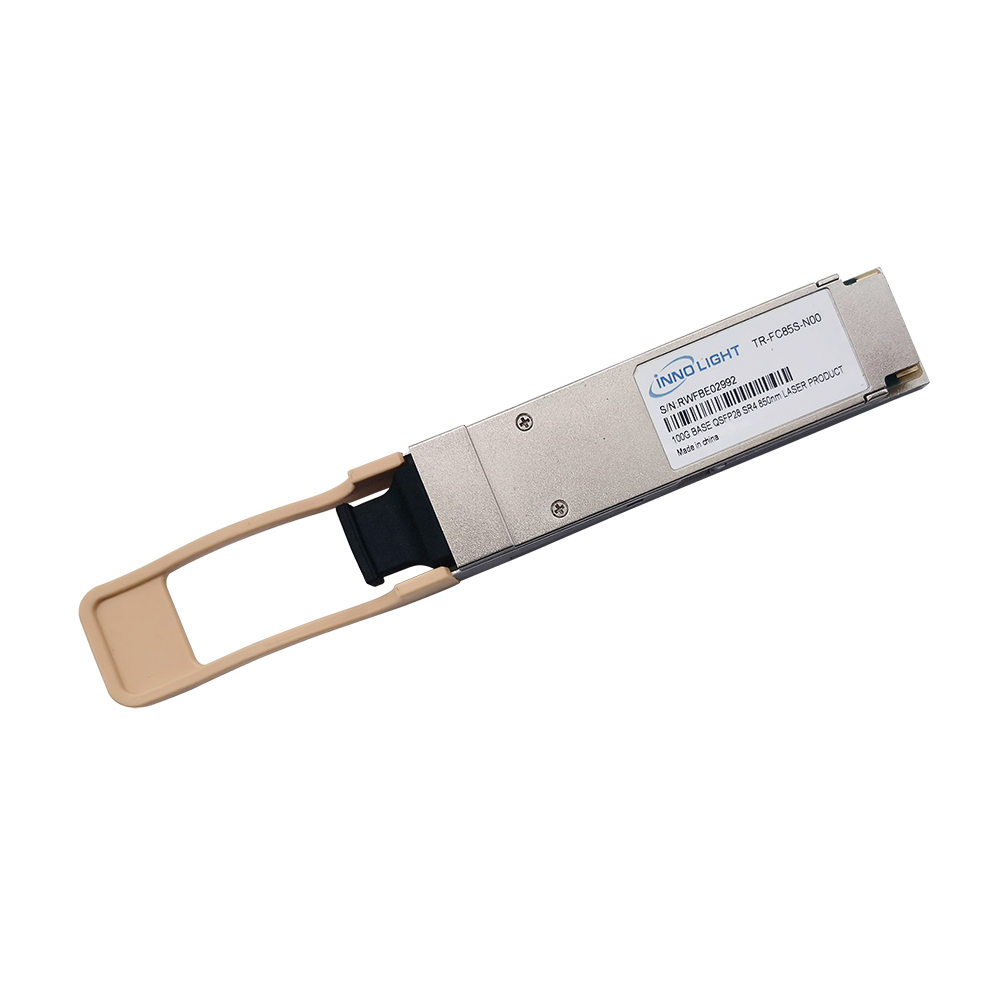

Original Innolight Used TR-FC85S-N00 100G QSFP28 SR4 850nm Optical Transceiver

Original Innolight Used TR-FC85S-N00 100G QSFP28 SR4 850nm Optical Transceiver

  • item no.:

    100G QSFP28 SR4 2km
  • brand:

    Innolight
  • Warranty:

    1 Year
  • Condition:

    New
  • Temperature:

    0-70
  • Data Rate:

    100G
  • Distance:

    2km
  • Wavelength:

    850nm
  • Connector:

    LC
product details

INNOLIGHT DATA CENTER

10G SFP+

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-PX13L-N00 SFP+ LR 10G 1310nm DFB PIN -8.2 0.5 - -14.4 <1w 10km 0-70
TR-PX15E-N00 SFP+ ER 10G 1550nm EML PIN -3 3 - -15.8 <1.5w 40km 0~70
TR-PX15Z-N00 SFP+ ZR 10G 1550nm EML APD 0 4 - -24 <1.8w 80km 0~70

25G SFP28

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TF-PYxxx-N00 SFP28 AOC 25G 850nm VCSEL PIN N/A N/A N/A N/A 1.0 (each SFP28) 100m 0-70
TR-PY85S-N00 SFP28 SR 25G 850nm VCSEL PIN -8.4 2.4 -10.3 2.4 1 100m 0~70
TR-PY13L-N00 SFP28 LR 25G 1310nm DFB PIN -7 2 -13.3 2 1 10km 0~70
TR-PY13E-N00 SFP28 ER 25G 1310nm EML APD -3 6 -21 -4 1.5 40km 0~70
TR-PB85S-N00 SFP28 32GFC SR 28G 850nm VCSEL PIN -6.2 2 -10.3 2 1 100m 0~70
TR-PB13L-N00 SFP28 32GFC LR 28G 1310nm DFB PIN -5 2 -13.3 2 1.2 10km 0~70

40G QSFP

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-QQ85S-N00 QSFP+ eSR4 40G 850nm VCSEL PIN -7.6 1 -9.5 2.4 1.5 100m 0-70
TR-QQ85X-N00 SFP28 SR 40G 850nm VCSEL PIN -7.3 1 -9.9 2.4 1.5 300m 0~70
TR-QQ13T-N00 QSFP+ IR4 40G DFB CWDM PIN -7 2.3 -11.7 2.3 3.5 10km 0~70
TR-QQ13L-N00 QSFP+ LR4 40G DFB CWDM PIN -7 2.3 -21 -4 1.5 40km 0~70
TR-QQ13E-N00 QSFP+ ER4 40G DFB CWDM APD -2.7 4.5 -21.2 -4.5 3.5 40km 0~70
TR-IQ13C-N00 QSFP+ PSM IR4 40G 1310nm DFB PIN -5.5 1.5 -11.5 1.5 3.5 10km 0~70
TR-IQ13L-N00 QSFP+ PSM LR4 40G 1310nm DFB PIN -5.5 1.5 -12.6 1.5 3.5 10km 0~70
TF-QQxxx-N00 QSFP+ AOC 40G 850nm VCSEL PIN N/A N/A N/A N/A 1.5 (each QSFP+) 100m 0~70
TR-QQ13Y-N00 QSFP+ LX4(MMF/SMF) 40G DFB CWDM PIN -5 / -7 3.5 / 2.3 -7 / -11.7 3.5 / 2.3 3.5 150m / 2km 0~70
TF-QPQXxxx-N00 QSFP+ to 4x SFP+ AOC 40G 850nm VCSEL PIN N/A N/A N/A N/A 1.5 (QSFP+)0.8 (each SFP+) 100m 0~70

100G QSFP28

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-FC85S-N00 QSFP28 SR4 100G 850nm VCSEL PIN -8.4 2.4 -10.3 2.4 2.5 100m 0-70
TR-FC13R-N00 QSFP28 LR4 Ethernet 100G 1296-1309nm LWDM DFB PIN -4.3 4.5 -10.6 4.5 4 10km 0~70
TR-FC13T-N00 QSFP28 CWDM4 100G DFB CWDM PIN -6.5 2.5 -11.5 2.5 3.5 10km 0~70
TR-FC13D-N00 QSFP28 ER4 Lite 100G 1296-1309nm LWDM EML APD -2.5 6.5 -16.65 / -20.5 -3.5 4.5 30km / 40km (w/ FEC) 0~70
TR-FC13D-NSN QSFP28 ER4 Lite Dual Rates 100G / 112G 1296-1309nm LWDM EML APD -0.7 6.5 -14.85 / -18.7 -3.5 4.5 30km / 40km (w/ FEC) 0~70
TP-VC13Txxxx-N00 QSFP28 PSM4 Pigtail 100G 1310nm DFB PIN -5.5 2 -10.5 2 3.5 2km 0~70
TF-FCxxx-N00 QSFP28 AOC 100G 850nm VCSEL PIN N/A N/A N/A N/A N/A 10km 0~70
TF-QQxxx-N00 QSFP+ AOC 100G 850nm VCSEL PIN N/A N/A N/A N/A 2.5 (QSFP28)1.0 (each SFP28) 100m 0~70
TR-VC13T-N00 QSFP28 PSM4 100G 1310nm DFB PIN -5.5 2 -10.2 2 3.5 2km 0~70

200G QSFP-DD

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
T-FX4FNS-N00 QSFP56 SR4 200G 850nm VCSEL PIN -6.5 4 -8.4 4 5.5 100m 0~70
T-FX4FNT-H00 QSFP56 FR4 200G EML CWDM4 PIN -4.2 4.7 -8.2 4.7 6.5 2km 15~65
C-FXT4FNMxxx-N00 QSFP56 200G to QSFP28 2*100G AOC 200G 850nm VCSEL PIN N/A N/A N/A N/A 8 (200G side)
4 (100G side)
20m 0~70

400G QSFP-DD SR8

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
T-DQ8FNS-N00 QSFP-DD SR8 400G 850nm VCSEL PIN -6 4 -7.9 4 12 100m 0-70
T-DP4CNH-N00 QSFP-DD DR4 400G 1310nm EML PIN -2.9 4 -5.9 4 12 500m 0~70
T-DP4CNT-N00 QSFP-DD DR4+ 400G 1310nm EML PIN -2.4 4 -6.4 4.5 12 2km 0~70
T-DQ4CNT-N00 QSFP-DD FR4 400G EML CWDM4 PIN -3.3 3.5 -7.3 3.5 12 2km 0~70
T-DQ4CNL-N00 QSFP-DD LR4 400G EML CWDM4 PIN -1.4 4.5 -7.7 -4.5 12 10km 0~70
C-DQ8FNMxxx-H00 QSFP-DD AOC 400G 850nm VCSEL PIN N/A N/A N/A N/A 12.0 (each QSFP-DD) 100m 0~70
T-DQ4CNE-N00 QSFP-DD ER4 400G EML LWDM4 APD 0.4 1.5 -12.6 -2.5 12.0 30km 40km (w/ FEC) 0~70



Description:

4 independent full-duplex channels
 Up to 28Gb/s data rate per channel
 QSFP28 MSA compliant
 Up to 100m OM4 MMF transmission
 Operating case temperature: 0 to 70oC
 Single 3.3V power supply
 Maximum power consumption 3.5W
 MTP/MPO optical connector
 RoHS-6 compliant
Applications

 Rack to Rack
 Data Center
 Infiniband QDR, DDR and SDR

 100G Ethernet
