ONS-XC-10G-S1

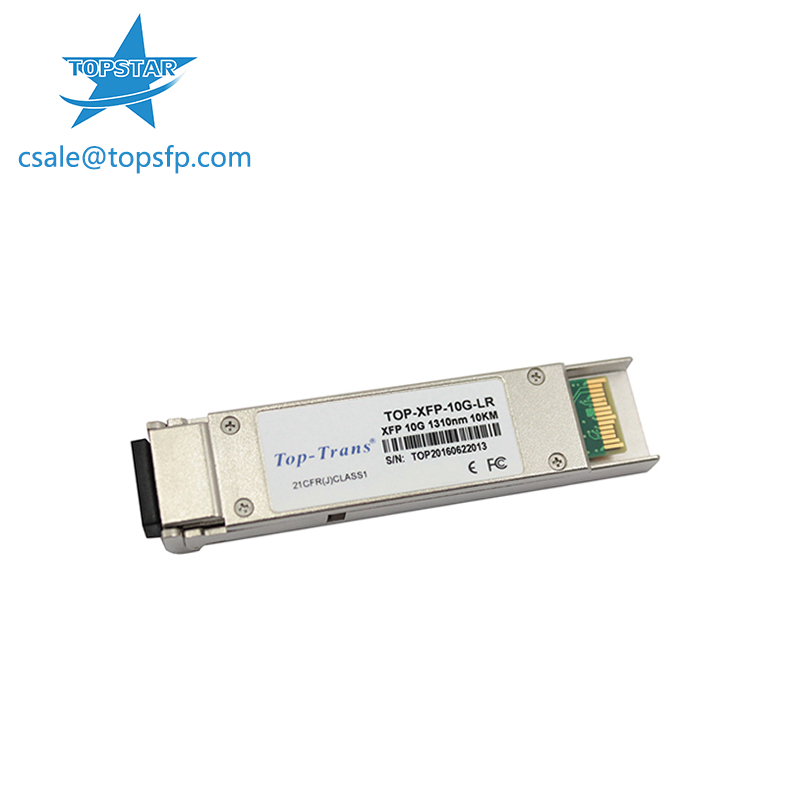

ONS-XC-10G-S1 Compatible 10GBASE-LR/LW and OC-192/STM-64 SR-1 XFP 1310nm 10km DOM Transceiver Module

ONS-XC-10G-S1 Compatible 10GBASE-LR/LW and OC-192/STM-64 SR-1 XFP 1310nm 10km DOM Transceiver Module can be used for ASR 9000 Series (Modular Line Card : A9K-8T/4-L) etc.

item no.:
ONS-XC-10G-S1
brand:
Top-Trans
Warranty:
1 Year
Temperature:
0 to 70°C
Data Rate:
10G
Distance:
10km
Wavelength:
1310nm
Connector:
LC duplex

contact now

Datasheet

product details

ONS-XC-10G-S1 Compatible 10GBASE-LR/LW and OC-192/STM-64 SR-1 XFP 1310nm 10km DOM Transceiver Module

Features

Hot pluggable
Support9.95Gb/sto11.1Gb/s bit rates
Below<1W power consumption
XFPMS A package with duplex LC connector
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
Un-cooled1310nmDFBlaser
+3.3V single power supply
operating temperature range0°Cto70°C
No reference clock requirement

tags : ONS-XC-10G-S1 10G-LR/LW ONS-XC OC-192/STM-64 SR-1 XFP 1310nm 10km XFP 10km
