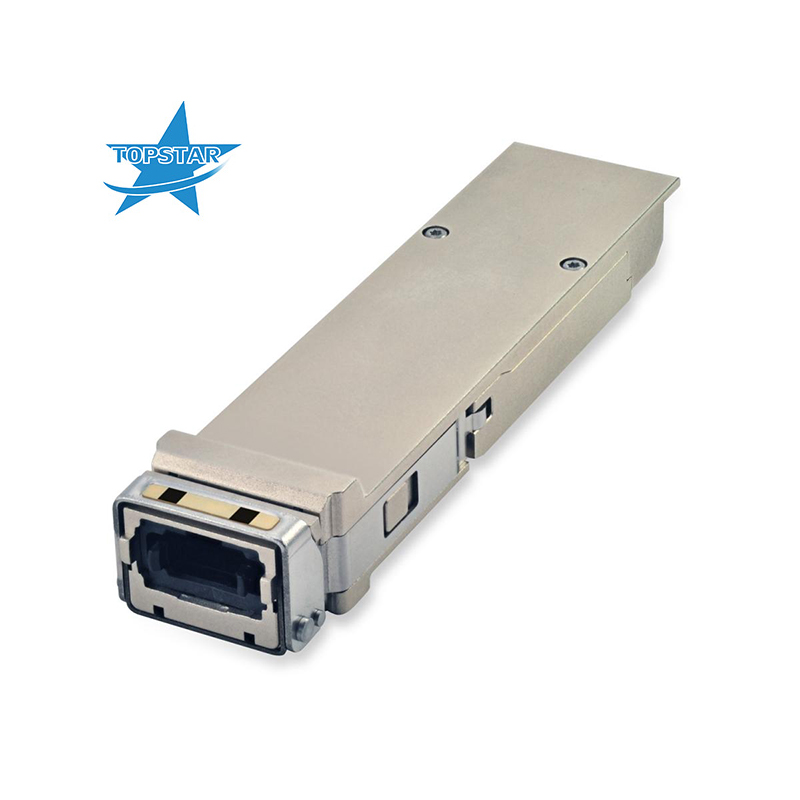

Hot-pluggable Compatible FTLC9141SENM 100GBASE-SR4 and OTN Multirate 100m CFP4 Optical Transceiver

Hot-pluggable Compatible FTLC9141SENM 100GBASE-SR4 and OTN Multirate 100m CFP4 Optical Transceiver

  • item no.:

    100G CFP4 MPO 100m
  • brand:

    Finisar
  • Warranty:

    3 Years
  • Condition:

    New
  • Temperature:

    -5-75
  • Data Rate:

    112 Gb/s
  • Distance:

    100m
  • Wavelength:

    850nm
  • Connector:

    MPO
product details

Product Description:


Distance:100 m
Data Rate (max):112 Gb/s
Protocol:OTN OTU4 Compliant 100G Ethernet Compliant
Low End Case Temperature (°C):-5
High End Case Temperature (°C):75
Diagnostics:Digital
Transmitter:4x VCSEL Array
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP12)
Wavelength:850nm Band

Product Feature:


Hot-pluggable CFP4 form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rate
Power dissipation <4W
RoHS-6 compliant
Single 3.3V power supply
Maximum link length of 100m on OM4 Multimode Fiber (MMF)
4x28Gb/s 850mm VCSEL-based transmitter
4x28G electrical interface
Single MPO12 receptacle
MDIO management interface
Commercial case temperature range: 0°C to 70°C
