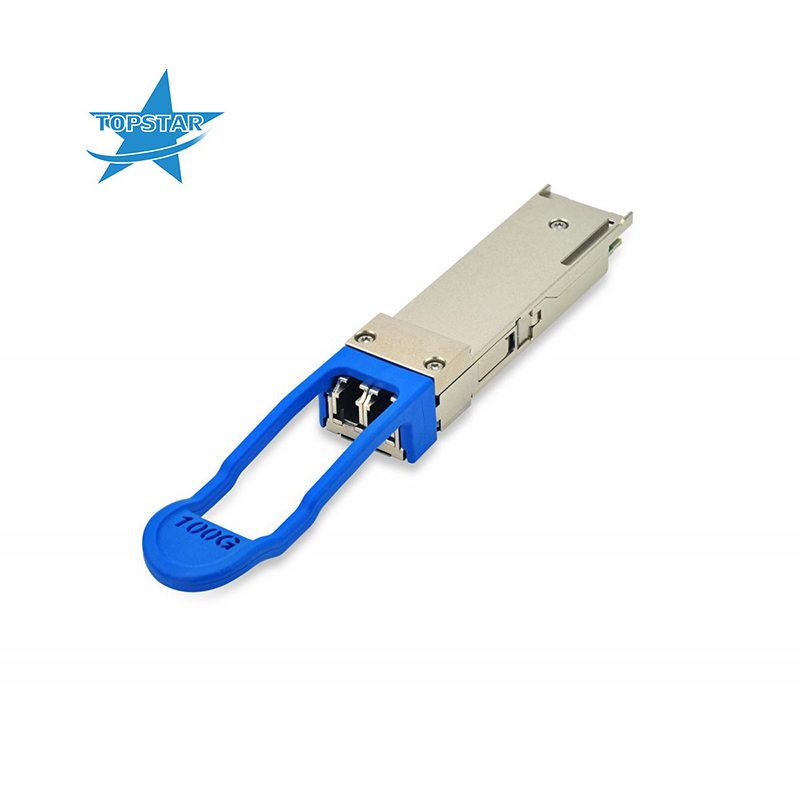

Hot-pluggable Compatible FTLC1154SDPL 100GBASE-LR4 and OTU4 10 km QSFP28 Optical Transceiver

item no.:
100G QSFP28 LC 10km
brand:
Finisar
Warranty:
3 Years
Condition:
New
Temperature:
0-70
Data Rate:
112 Gb/s
Distance:
10km
Wavelength:
1310nm
Connector:
LC

contact now

product details

Product Description：

Distance:10 km
Data Rate (max):112 Gb/s
Protocol:OTN OTU4 Compliant 100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature：

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
3.5W maximum power dissipation
RoHS-6 compliant
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x25Gb/s 1310nm DFB-based transmitter
4x25G electrical interface
Full digital diagnostics functions
Integrated 4-channel WDM mux/demux for duplex LC operation
Duplex LC receptacles
