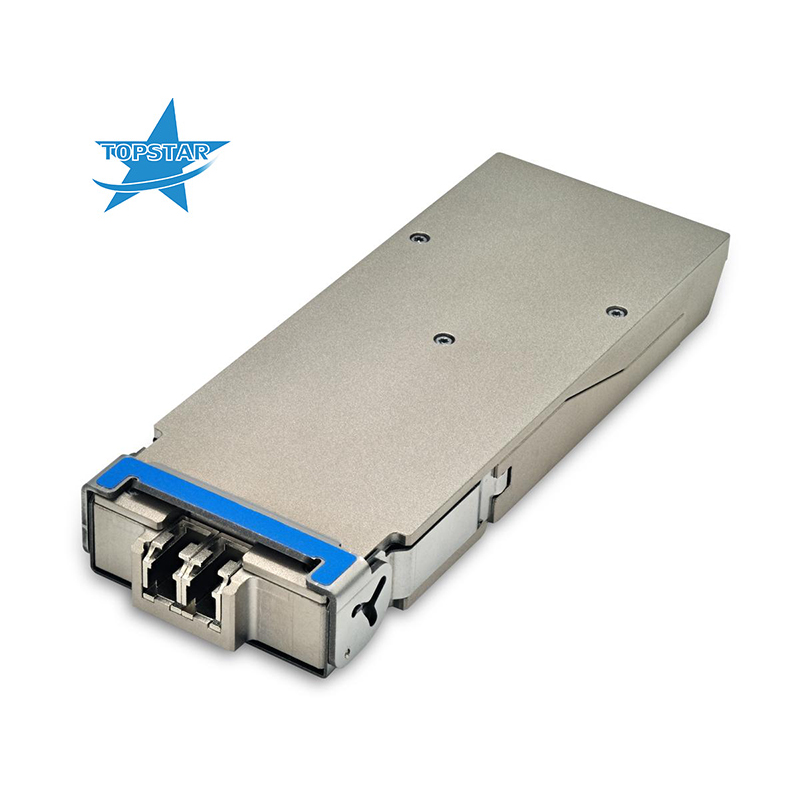

read moreHot-pluggable Compatible Finisar FTLC1122SDNL 100GBASE-LR4 and OTU4 Dual Rate 10km Gen2 CFP2 Optical Transceiver
item no.:
100G CFP2 LC 10kmbrand:
FinisarWarranty:
3 YearsCondition:
NewTemperature:
0-75Data Rate:
112 Gb/sDistance:
10kmWavelength:
1310nmConnector:
LC
Description:
Distance:10 km
Data Rate (max):112 Gb/s
Protocol:100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):75
Diagnostics:Digital
Transmitter:4x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band
Product Feature:
Hot-pluggable CFP2 form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
Power dissipation < 5W
RoHS-6 compliant (lead-free)
Commercial case temperature range of 0°C to 75°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x28Gb/s DFB-based LAN-WDM transmitter
4x28G electrical interface
Duplex LC receptacles
MDIO management interface
prev :
Compatible Finisar FTLF8532P4BNV 32G Fibre Channel (32GFC) Short-Wavelength Extended Temperature SFP28 Optical Transceivernext :
Compatible Finisar FTLC1122RDNL 100GBASE-LR4 10km Gen2 CFP2 Optical TransceiverFinisar FTLF1621P1xCL (80km ZR 2G)Small Form Factor Pluggable (SFP) optical transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET OC-48 LR-2 (SDH STM L-16.2) standards, Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC-PI 13.0. They(2G Optical Modules) are compatible with SONET OC-12 SR and SONET OC-3 standards. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
Finisar FWLF1523P1x51 Small Form Factor Pluggable (SFP) transceivers provide a reliable solution for 1511nm, point-to-point, 155Mb/s Optical Supervisory Channel (OSC) applications, outside the band of the transmitted signal. 1550nm 80km ZX 155 MB Modules are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), as well as with SONET and SDH standards at OC-3 LR-2/STM L-1.2 and Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. 155M ZX SFP Modules are RoHS compliant and lead-free per Directive 2011/65/EU and Finisar Application Note AN-2038.
Finisar's FWLF15197Dxx CWDM Small Form Factor Pluggable (SFP) optical transceivers are designed for operation in Metro Access Rings and Point-to-Point networks using Gigabit Ethernet and Fibre Channel networking equipment.The 1G CWDM Optical Modules are available in eight different CWDM wavelengths. Digital diagnostics functions are available via two-wire serial bus. In addition, the 80km CWDM Optical Modules comply with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The optical transceiver is compliant per RoHS Directive 2011/65/EU.
Finisar FWLF15197Dxx CWDM Small Form Factor Pluggable (SFP) 1.25G CWDM Optical Transceiver is designed for operation in Metro Access Rings and Point-to-Point networks using Gigabit Ethernet and Fibre Channel networking equipment. The 100km 1.25G CWDM are available in eight different CWDM wavelengths. Digital diagnostics functions are available via two-wire serial bus. In addition, the 100km CWDM Optical Transceivers comply with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The optical transceiver is compliant per RoHS Directive 2011/65/EU.
This product is a 10Gb/s XFP DWDM transceiver module,which is 10GBASE 40KM DWDM XFP. Finisar FTLX6814MCC transceiver has a maximum reach of 80km at 10.5 Gb/s data rate.
Finisar FWLF15217Dxx CWDM 50km 2G SFP transceivers are designed for operation in Metro Access Rings and Point-to-Point networks using SONET, Gigabit Ethernet and Fibre Channel networking equipment. Finisar 50km 2G CWDM are available in eight different CWDM wavelengths and comply with ITU CWDM standard. Digital diagnostics functions can be accessed via an I2C serial bus. In addition, the transceivers comply with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) are RoHS and lead-free compliant per Directive 2011/65/EU and Finisar Application Note AN-2038.
Finisar FWLF1621P2Txx CWDM Small Form Factor Pluggable (SFP) transceivers are designed for operation in Metro Access Rings and Point-to-Point networks using SONET, Gigabit Ethernet Modules and Fibre Channel Modules networking equipment in environments where temperatures are not controlled. CWDM 50km 2.67G SFP is available in eight different CWDM wavelengths and complies with ITU CWDM standard. Digital diagnostics functions can be accessed via an I2C serial bus. In addition, High Density CWDM Transceivers comply with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) are RoHS and lead-free compliant per Directive 2011/65/EU and Finisar Application Note AN-2038.
Finisar FWLF1621P2Txx CWDM Small Form Factor Pluggable (SFP) ZX CWDM SFP transceivers are designed for operation in Metro Access Rings and Point-to-Point networks using SONET, Gigabit Ethernet and Fibre Channel networking equipment in environments where temperatures are not controlled. CWDM 80km 2.67G SFP is available in eight different CWDM wavelengths and comply with ITU CWDM standard. Digital diagnostics functions can be accessed via an I2C serial bus. In addition,1550nm 2.67G CWDM Optical Transceivers comply with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) are RoHS and lead-free compliant per Directive 2011/65/EU and Finisar Application Note AN-2038.
