Finisar FTLC8281xCNM Compatible 100GBASE-SR10 100m 100G Metro CFP

100G CFP CFP2 CFP4
new products

Finisar FTLC8281xCNM 100GBASE-SR10 CFP
Finisar FTLC8281xCNM 100GBASE-SR10 CFP

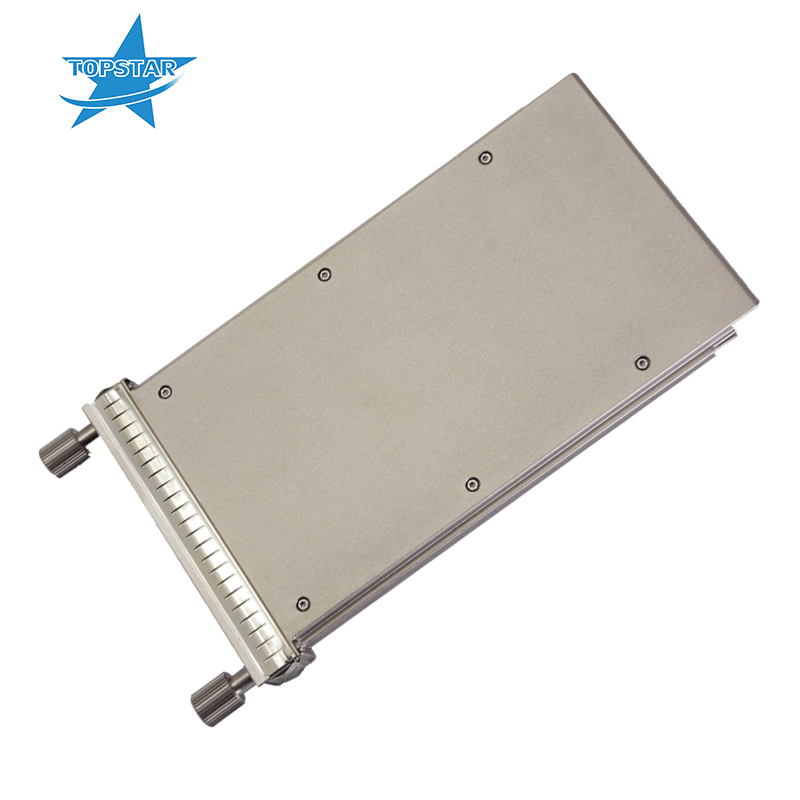

Finisar FTLC8281xCNM Compatible 100GBASE-SR10 100m 100G Metro CFP

Designed for 100G Ethernet 100GBASE-SR10 links over multiple multimode fibers, the Gigalight 100G CFP SR10 optical module (GCF-M101-SR10C) supports transmission distance up to 100m using 850nm wavelengths.

  • item no.:

    TOP-CFP-100G-SR10

  • lead time:

    1-3 working days

  • product orgin:

    China

  • brand:

    Top-Trans

  • payment:

    EXW

  • Warranty:

    3 Years

  • Temperature:

    0℃~70℃

  • Data Rate:

    100G

  • Distance:

    100m

  • Wavelength:

    850nm

  • Connector:

    MPO
contact now
product details

Finisar FTLC1121SDNL Compatible 100GBASE-LR4 10km 100gbase CFP2 Dimensions


Features


Hot-pluggable CFP form factor

Compliant with CFP MSA standard

Compliant with IEEE 802.3ba 100GBASE-SR10 standard

10 channels full-duplex transceiver module

Supports 100Gb/s aggregate bit rate

10 channels 850nm VCSEL array

10 channels PIN photo detector array

8W maximum power dissipation

Maximum link length of 100m on OM3 MMF or 150m on OM4 MMF

Single MTP/MPO receptacle

MDIO digital diagnostic interface and control capabilities

Tx input and Rx output CDR retiming

Operating case temperature range: 0 to 70°C

Single 3.3V power supply

RoHS-6 compliant (lead free)



Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.



Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered.



tags : Finisar FTLC8281xCNM 100GBASE-SR10 100m 100G CFP 100G Metro CFP Finisar 100G CFP CFP 100GBASE-SR10
