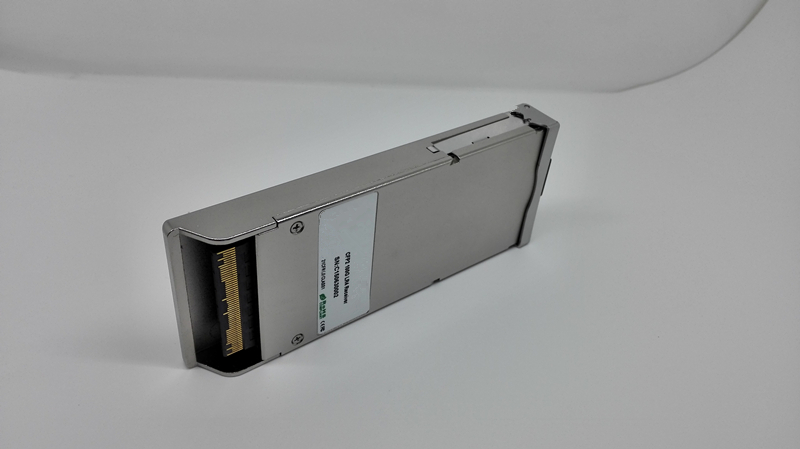

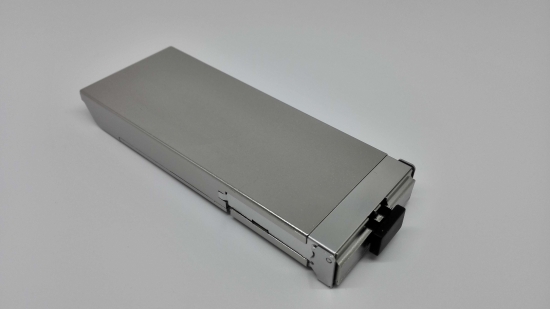

Finisar FTLC8221SCNM Compatible 100GBASE-SR10 850nm 100m CFP2 100G Coherent

The CFP2 optical transceiver module are a high performance, low power consumption, short reachinterconnect solution supporting 100G Ethernet and Telecom. It is compliant with the CFP2 MSA and IEEE P802.3ba 100GBASE-SR10. Topstar CFP2 SR10 modules offer 10 transmit and 10 receive asynchronous channels operating at up to 11.18Gbps per channel.

  • item no.:

    TOP-CFP2-100G-SR10
  • lead time:

    1-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • payment:

    EXW
  • Warranty:

    3 Years
  • Condition:

    New
  • Temperature:

    0℃~70℃
  • Data Rate:

    100G
  • Distance:

    100m
  • Wavelength:

    850nm
  • Connector:

    MPO
product details

Finisar FTLC8221SCNM Compatible 100GBASE-SR10 850nm 100m CFP2 100G Coherent

Finisar FTLC8221RFNM CFP2 SR10


Features

Compliant to CFP2Hardware Specification Version 1.0

Compliant to CFP2 MSA Management Interface Specification Version 2.2

Compliant to the IEEE 802.3ba(100GBASE-SR10)

Transmission data rate up to 11.18Gbit/s per channel

Up to 100m on OM3 and 150m on OM4 MMF

Power class 1 (<8W max)

OTU4 compatible

10 channels 850nm VCSEL array transmitter

10 channels PIN photo detector array receiver

MDIO digital diagnostic interface and control capabilities.

TX input and RX output CDR retiming

Hot pluggable electrical interface

Operating case temperature:0°C~ +70°C

Single 3.3V power supply

RoHS 6 compliant(lead free)

Utilizes a standard 24/20 lane optical fiber with MPO connector


Applications

100GBE interconnects

High-speed core router connections&Datacom/Telecom switch

Data aggregation and backplane applications

Proprietary protocol and density application


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.





OEM& ODM:

Customized label and package , OEM and ODM service offered.
