Finisar FTL410QE2N QSFP+ 40GBASE-SR4 100m

Finisar FTL410QE2N QSFP+ 40GBASE-SR4 100m

Finisar FTL410QE2N QSFP+ 40GBASE-SR4 100m

Finisar FTL410QE2N QSFP+ 40GBASE-SR4 100m

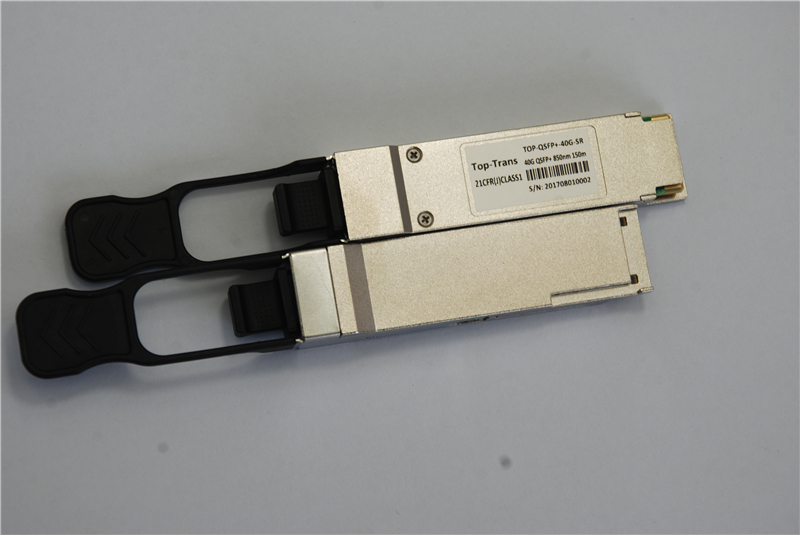

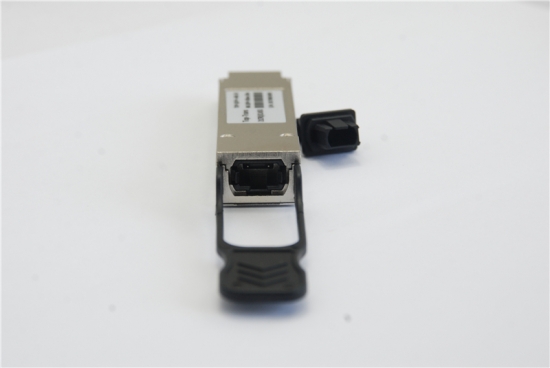

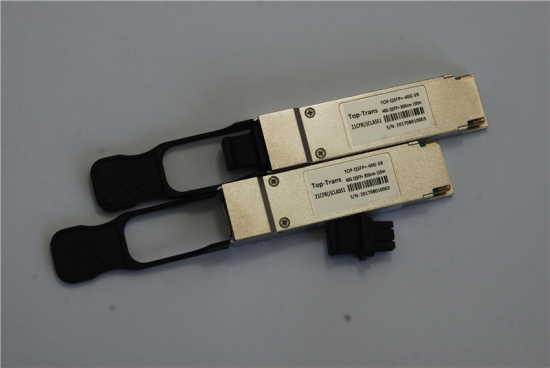

Finisar FTL410QE2N Compatible QSFP+ 40GBASE-SR4 100m Extended Temperature

The TOP-QSFP-40G-SR4 is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module. It provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate data rate of 40Gbps over 100 meters of OM3 multi-mode fiber.

item no.:
TOP-QSFP+-40G-SR
lead time:
1-3 working days
product orgin:
China
brand:
Top-Trans
payment:
EXW
price range:
1-10/59.9$
Warranty:
3 Years
Condition:
New
Temperature:
0℃~70℃
Data Rate:
40G
Distance:
100m
Wavelength:
850nm
Connector:
MPO

contact now

Datasheet

product details

Finisar FTL410QE2N Compatible QSFP+ 40GBASE-SR4 100m Extended Temperature

Features

4 independent full-duplex channels

Up to 11.2Gbps data rate per channel

MTP/MPO optical connector

QSFP MSA compliant

Digital diagnostic capabilities

Capable of over 100m transmission on OM3 multi-mode ribbon fiber

CML compatible electrical I/O

Single +3.3V power supply

Operating case temperature: 0~70C

XLPPI electric interface (with 1.5W Max power)

RoHS-6 compliant

Applications

Rack to rack

Data Center

Infiniband QDR, DDR and SDR

40G Ethernet

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

OEM& ODM:

Customized label and package , OEM and ODM service offered.
