Optical Transceiver Module
10G SFP+
new products

Compatible with WS-C3650-8X24UQ-S SFP 10G Optical LC Transceiver 850nm 300m SFP+ Module

SFP+ 10G 300M 850nm optical transceivers are designed for 10Gb/s serial optical interfaces for data communications with multimode fiber (MMF).This SFP is compatible with Cisco WS-C3650-8X24UQ-S. The transceiver can support 1.25Gb/s to 11.1Gb/s. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and storage applications.

  • item no.:

    TOP-SFP+-10G-SR
  • lead time:

    1-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    EXW
  • price range:

    1-10/14.5$
  • Warranty:

    3 Years
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    850nm
  • Wavelength:

    300m
  • Connector:

    Single port LC/SC
product details

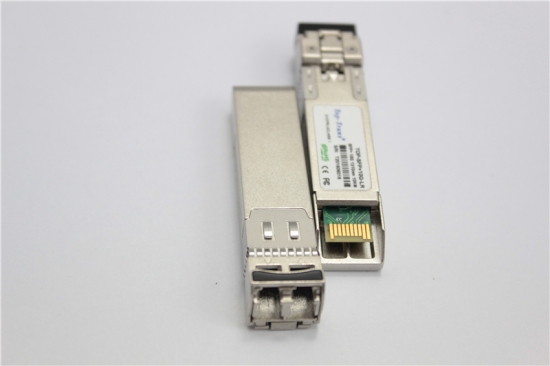

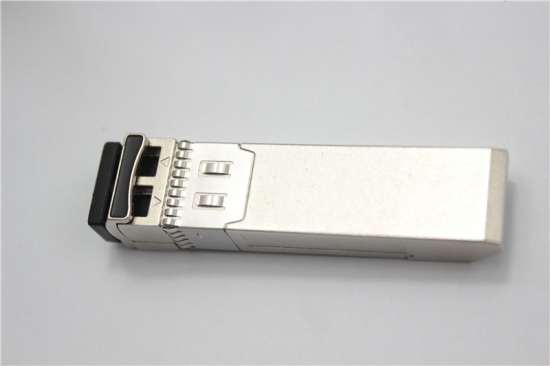

SFP 10G Optical LC Transceiver 850nm 300m SFP+ Module

SFP 10G Optical LC Transceiver


PRODUCT FEATURES

● Hot pluggable

● 10Gb/s serial optical interface

● Up to 300m on 50/125um MMF(2000MHZ.KM)

● Compliant with SFP+ MSA

● SFP MSA package with duplex LC connector

● Digital Diagnostic Monitor Interface

● Very low EMI and excellent ESD protection

● High transmission margin

● +3.3V single power supply

● Below <1W power consumption

● SFP mechanical interface

● Wide data-rate range



APPLICATIONS

●  10G Base-SR/SW

●  10G Fiber Channel

●  Other optical links



STANDARD

●  SFP+ MSA Compliant

●  SFF-8472 reversion 9.5 compliant

●  IEEE802.3-2005 compliant

●  Telcordia GR-468-CORE compliant

●  FCC 47 CFR Part 15,Class B compliant

●  FDA 21 CFR 1040.10 and 1040.11,class1 compliant

●  RoHS compliant


Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered.


Send Us An Inquiry

We will contact you as soon as possible!

related products

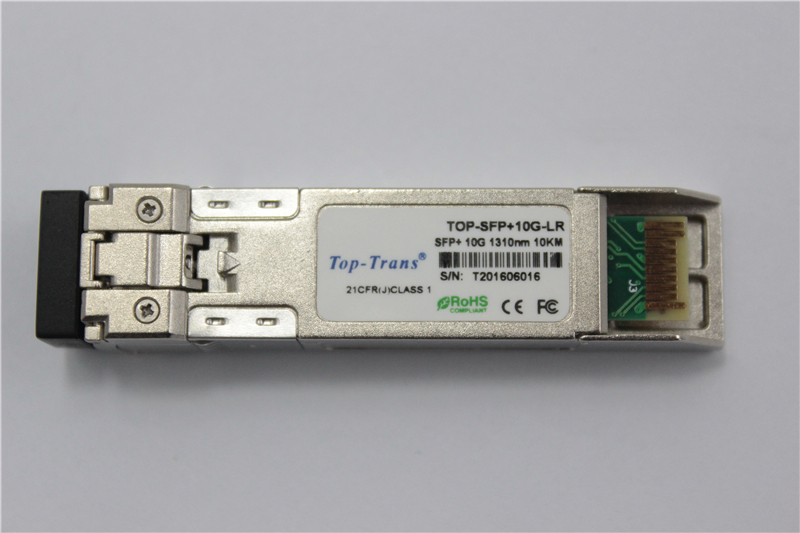

  • 10G 1310nm 10km Gigabit TSFP+-10G-LR Compatible with WS-C3650-8X24UQ-S 1310nm 10km 10G Switch
