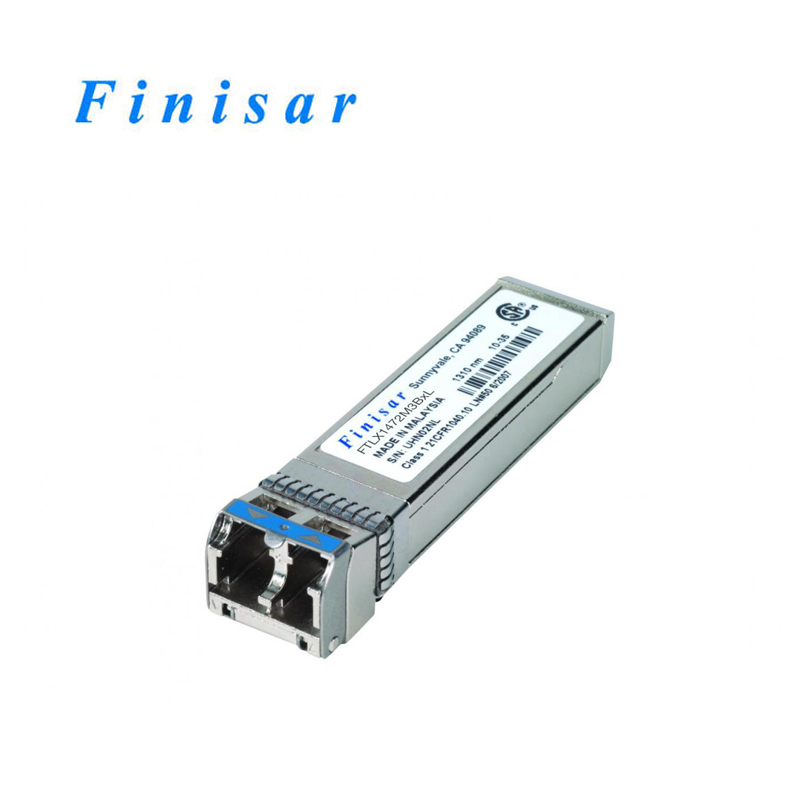

Compatible Finisar FTLX1472M3BxL 10GBASE-LR/OC-192 SR-1 Multirate 10km SFP+ Optical Transceiver

item no.:
10G SFP+ LC 10km
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
-5-85
Data Rate:
11.3 Gb/s
Distance:
10 km
Wavelength:
1310nm
Connector:
LC

contact now

product details

Product Description：

Distance:10 km
Data Rate (max):11.3 Gb/s
Protocol:8x Fibre Channel Compliant SONET OC-192 Compliant 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant
Low End Case Temperature (°C):-5
High End Case Temperature (°C):85
Diagnostics:Digital
Transmitter:DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Featrue：

Hot-pluggable SFP+ footprint
Up to 10km link length
6.14, 8.5 and 9.83 through 11.3Gb/s bit rates
< 1.5W power dissipation, <1.0W with CDR's OFF
Pb-free/RoHS compliant
Single 3.3V power supply
Uncooled 1310nm DFB laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
FTLX1472M3BCL: Commercial temperature range -5°C to 75°C

FTLX1472M3BNL: Extended temperature range -5°C to 85°C

FTLX1472M3BTL: Extended temperature range -40°C to 85°C
