Compatible Finisar FTLX1471D3BCL 1310nm 10km 10G Media Converter SFP+ Transceiver

Finisar’s FTLX1471D3BCL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311 , SFF-84322 and IEEE 802.3ae 10GBASE-LR/LW3 , and 10G Fibre Channel 1200-SM-LL-L4 Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725 . The FTLX1471D3BCL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceivers are compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
  • item no.:

    FTLX1471D3BCL
  • brand:

    Finisar
  • payment:

    EXW
  • Warranty:

    1 Year
  • Temperature:

    -5℃~70℃
  • Data Rate:

    10G
  • Distance:

    10km
  • Wavelength:

    1310nm
  • Connector:

    Dual LC
product details

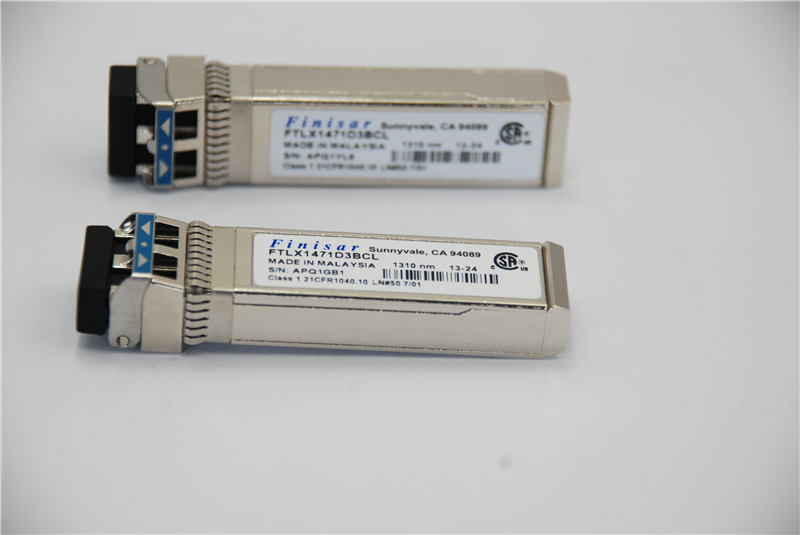

Finisar FTLX1471D3BCL 1310nm 10km 10G Media Converter SFP+ Transceiver

Finisar FTLX1471D3BCL 10G 10km


Features

Hot-pluggable SFP+ footprint

Supports 9.95 to 10.5Gb/s bit rates*

Power dissipation < 1W

RoHS-6 compliant (lead-free)

Commercial temperature range -5°C to 70°C

Single 3.3V power supply

Maximum link length of 10km

Uncooled 1310nm DFB laser

Receiver limiting electrical interface

Duplex LC connector

Built-in digital diagnostic functions


Applications

10GBASE-LR/LW 10G Ethernet

1200-SM-LL-L 10G Fibre Channel
