Compatible Finisar FTLX1412M3BTL LR 10km Simplex LC 10 Gigabit XFP Optical Transceiver

Finisar’s FTLX1412M3BTL Industrial Temperature Small Form Factor 10Gb/s (XFP) Simplex LC 10 Gigabit XSP are compliant with the current XFP Multi-Source Agreement (MSA) Specification1. They comply with SONET OC-192 SR-1, SDH STM I-64.1, 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is LR XFP and RoHS compliant and lead-free per Directive 2002/95/EC3, and Finisar Application Note AN-20384.

item no.:
FTLX1412M3BTL
brand:
Finisar
shipping port:
Shenzhen
payment:
EXW
Warranty:
1 Year
Condition:
New
Temperature:
-40°C to 85°C
Data Rate:
10 Gb/s
Distance:
10 km
Wavelength:
1310 nm
Connector:
Dual LC

contact now

product details

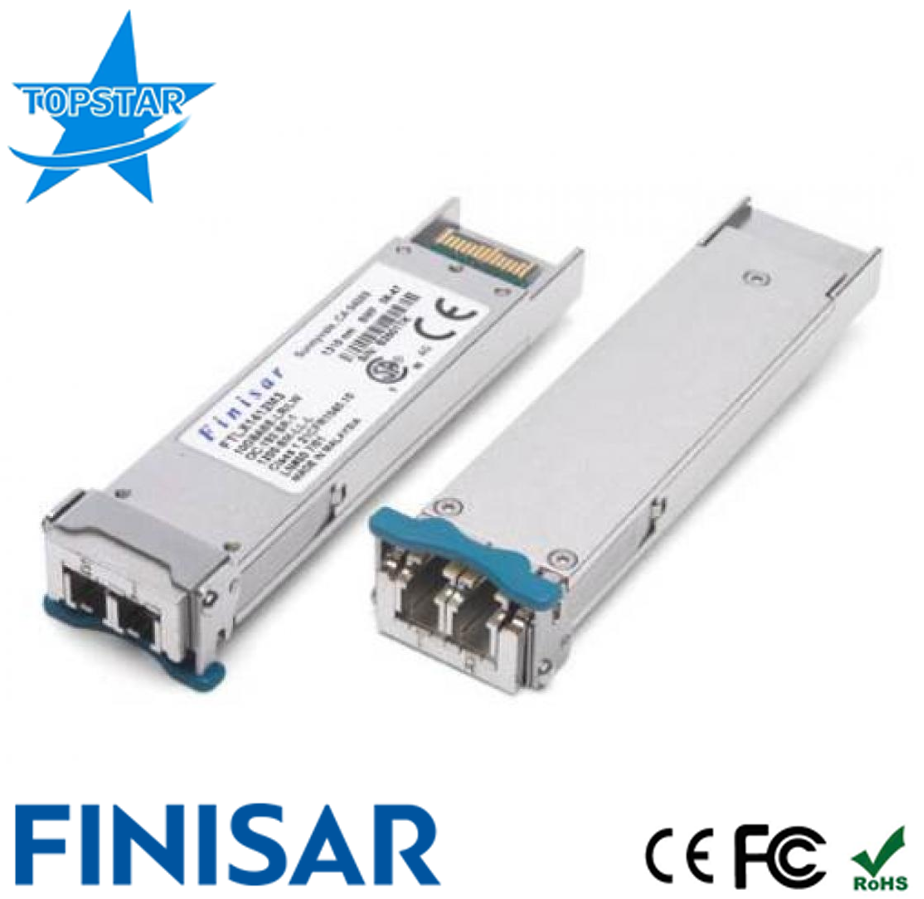

Finisar FTLX1412M3BTL LR 10km Simplex LC 10 Gigabit XFP Optical Transceiver

All the FTLX1412M3BTL we sell enjoys a 1-year warranty. The Simplex LC 10 Gigabit XSP will be shipped 1-3 working days after the payment is received, and XFP Optical Transceiver the reaches 10km is with Built-in digital diagnostic functions.

Features

Hot-pluggable XFP transceiver module
Supports 9.95Gb/s to 11.3Gb/s data rates
10GBASE-LR/LW 10 Gb/s Ethernet
SONET OC-192 SR-1 Compliant
1200-SM-LL-L 10 Gb/s Fibre Channel
Industrial temperature range: -40°C to 85°C
Uncooled 1310nm DFB laser
Maximum link length of 10km
Single Power supply 3.3V
No Reference Clock required
RoHS-6 compliant (lead-free)
Standard bail release mechanism
Duplex LC connector
Built-in digital diagnostic functions

LR 10km XFP

Why Choose Topstar?

1. We focus on high quality and service, every optic we ship is fully guaranteed for compatibility and operability.

2. Our transceivers are with stable performance, high quality with good price.

3. Our transceiver has high compatibility, can be compatible with most of the brand equipment, don’t worry about the transceiver compatibility.

4. They are well used in Dubai Telecom, one of Euro Telecom, Vienna Telecom and Thailand Telecom big projector, and we specially develop a new product CSFP have passed one of Euro Telecom testing, we have signed cooperation contract.

5. With 1 year warranty for original items.

6. Our powerful technicians have near 12 years experiences in this field, for any customer problem, we will give a solution within 24 hours.

7. Large stock, all of the popular optical modules can ship out in the day received the payment, some of the higher-value and specialized optics for 1-3 days.
