Optical Transceiver Module
10GB Modules
new products

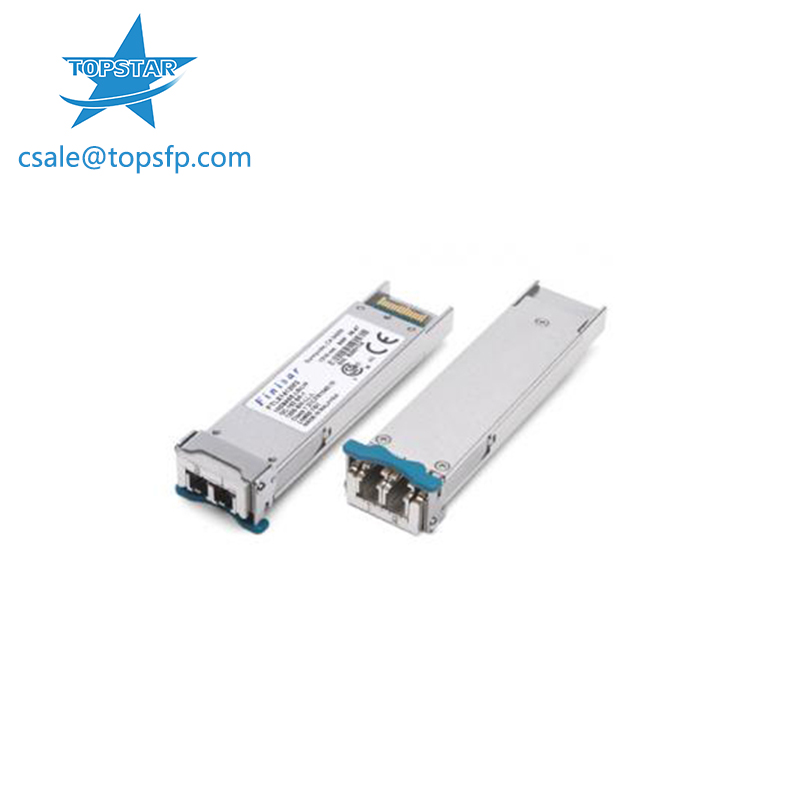

Compatible Finisar FTLX1412D3BTL Duplex XFP 10Gbps 10km SMF DDM 1310nm XFP Transceiver

Finisar’s FTLX1413D3BTL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae, 10G Fibre Channel 1200-SMLL-L, 8G Fibre Channel 800-SM-LC-L, and 10G CPRI. This transceiver can also support OTN/FEC protocols OTU1e and OTU2e upon request.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. If SONET/SDH compliance is required, please see Finisar Part Number FTLX1413M3BCL. The optical transceiver is compliant per the RoHS Directive 2011/65/EU3. See Finisar Application Note AN-2038 for more details.


  • item no.:

    FTLX1412D3BTL
  • lead time:

    2-3 working days
  • product orgin:

    Malaysia
  • brand:

    Finisar
  • shipping port:

    Shenzhen
  • payment:

    ex-w
  • Warranty:

    1 Year
  • Condition:

    New
  • Temperature:

    -40°C-85°C
  • Data Rate:

    10G
  • Distance:

    10km
  • Wavelength:

    1310nm
  • Connector:

    LC
product details

Finisar FTLX1412D3BTL Duplex XFP 10Gbps 10km SMF DDM 1310nm XFP Transceiver


Finisar FTLX1412D3BTL duplex XFP transceiver complies with 10 Gigabit Ethernet and 10G Fibre Channel



Product Fectures

Brand Finisar
Original Place Malaysia
Form Factor XFP
Part Number  FTLX1412D3BTL
Datarate 10G
Wavelength 1310nm
Distance 10km
Connector LC Connector
Temperature -40-85°C
Warranty
1 year

FINISAR FTLX1412D3BCL

Details


Supports 9.95Gb/s to 10.5Gb/s bit rates

Power dissipation <2.0W

Commercial temperature range: -5°C to 75°C

RoHS-6 Compliant (lead-free)

Hot-pluggable XFP footprint

Single power supply: 3.3V

Maximum link length of 10km

Uncooled 1310nm DFB laser

Duplex LC connector

No Reference Clock required

Built-in digital diagnostic functions

Standard bail release mechanism



APPLICATIONS


10GBASE-LR/LW 10G Ethernet

1200-SM-LL-L 10G Fibre Channel
