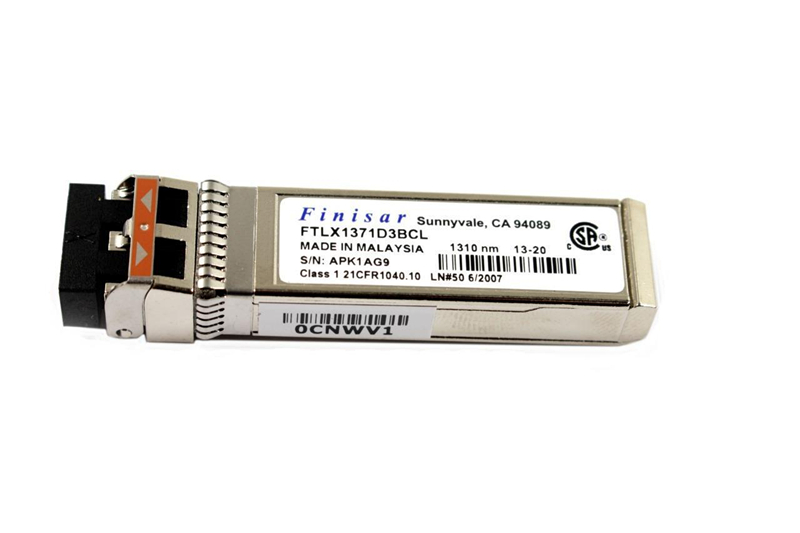

Compatible Finisar FTLX1371D3BCL 10GBASE-LRM 1310nm 220m RoHS-6 Compliant Multi Mode SFP+ Module

Finisar’s FTLX1371D3BCL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 220m over Multi Mode fiber. They are compliant with SFF-84311 , SFF-84322 and IEEE 802.3 aq3 10GBASE-LRM. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84724 . The FTLX1371D3BCL is a “linear module” i.e. it employs a linear receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host board EDC PHY with a linear receiver SFP+ module. The optical transceivers are compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
  • item no.:

    FTLX1371D3BCL
  • brand:

    Finisar
  • payment:

    EXW
  • Warranty:

    1 Year
  • Temperature:

    -5℃~70℃
  • Data Rate:

    10G
  • Distance:

    220m
  • Wavelength:

    1310nm
  • Connector:

    Dual LC
product details

Finisar FTLX1371D3BCL 10GBASE-LRM 1310nm 220m RoHS-6 Compliant Multi Mode SFP+ Module

Finisar FTLX1371D3BCL 10G 1310nm 220m

Features

Hot-pluggable SFP+ footprint

Supports 10.3Gb/s bit rate

Power dissipation < 1W

RoHS-6 compliant (lead-free)

Commercial temperature range -5°C to 70°C

Single 3.3V power supply

Maximum link length of 220m

Uncooled directly modulated Fabry-Perot (FP) laser at 1310nm

Receiver linear electrical interface

Duplex LC connector

Built-in digital diagnostic functions


Applications

10GBASE-LRM 10G Ethernet

Legacy FDDI multimode links
