Compatible Finisar FTLF8529P3BCV 14Gb/s Short-Wavelength 850nm 100m SFP+ Transceiver

Finisar’s FTLF8529P3BCV SFP+ transceivers are designed for use in Fibre Channel links up to 14.025Gb/s data rate over multimode fiber. They are compliant with FC-PI-5 Rev. 6.00a, SFF-8472 Rev 11.0c and SFF-8081h, and compatible with SFF-8432b and applicable portions of SFF-8431 Rev. 4.1d. The optical transceiver is compliant per the RoHS Directive 2011/65/EU5. See Finisar Application Note AN2038 for more details6.

  • item no.:

    FTLF8529P3BCV
  • brand:

    Finisar
  • payment:

    EXW
  • Warranty:

    1 Year
  • Condition:

    New
  • Temperature:

    0℃~70℃
  • Data Rate:

    14G
  • Distance:

    100m
  • Wavelength:

    850nm
  • Connector:

    Dual LC
product details

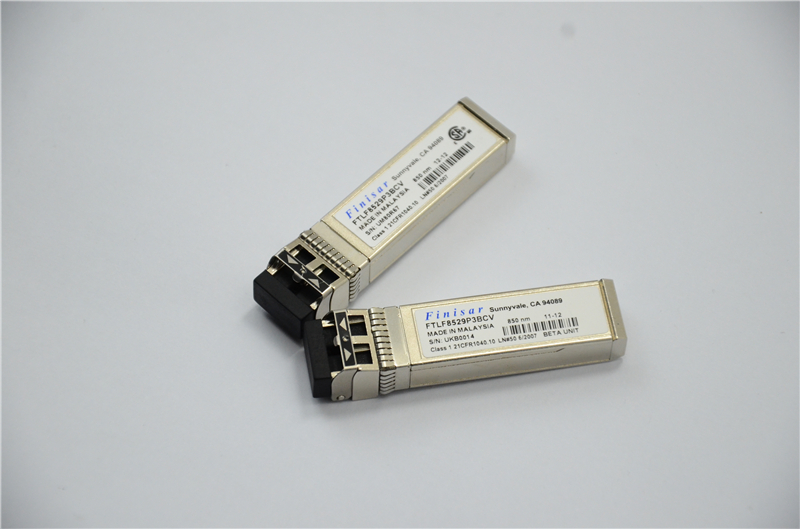

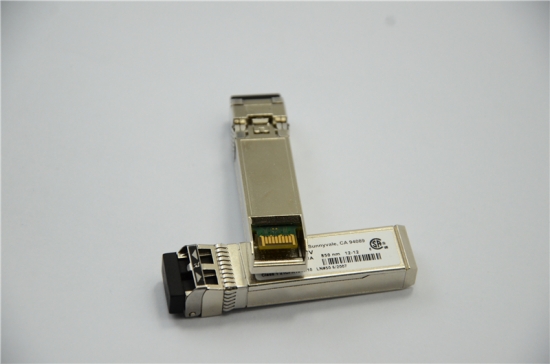

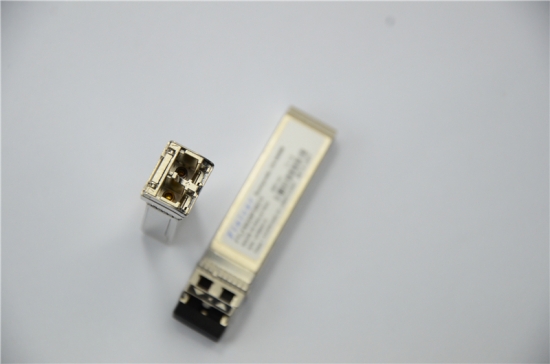

Finisar FTLF8529P3BCV 14Gb/s Short-Wavelength 850nm 100m SFP+ Transceiver

Finisar FTLF8529P3BCV 14G


Features

Up to 14.025 Gb/s bi-directional data links

Hot-pluggable SFP+ footprint

Built-in digital diagnostic functions

Built-in CDR with shut off control

850nm Oxide VCSEL laser transmitter

Duplex LC connector

RoHS compliant and Lead Free

35m on 50/125µm MMF

100m on high-bandwidth 50/125um (OM3) MMF

Metal enclosure, for lower EMI

Single 3.3V power supply

Operating temperature range: o 0°C to 70°C


Applications

Tri-Rate 4.25/8.5/14.025 Gb/s Fibre Channel
