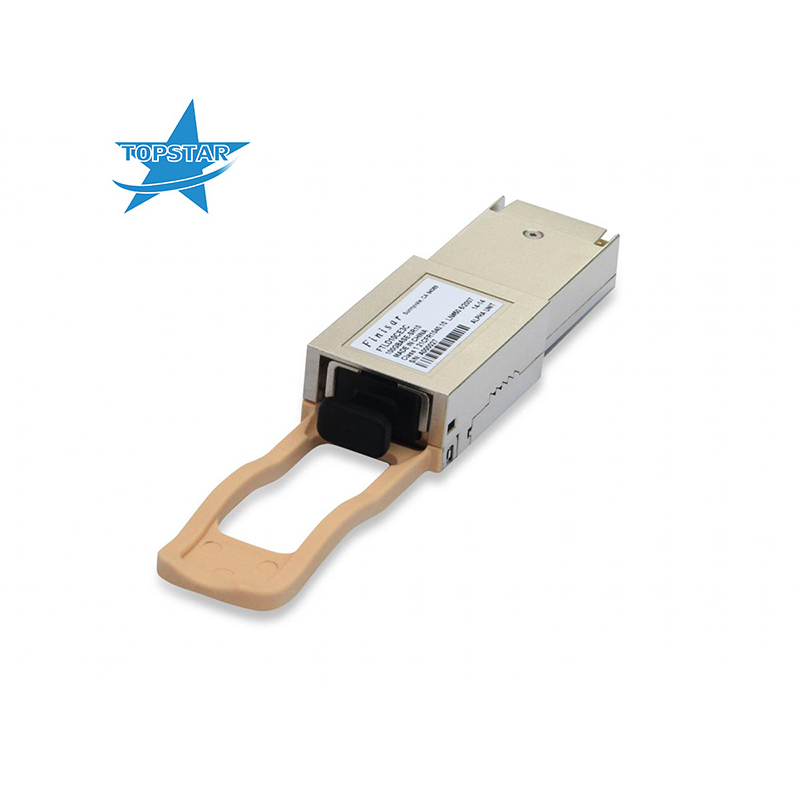

Compatible Finisar FTLD12CE3C 12x12.5G (150G) 100m Gen3 CXP Optical Transceiver

item no.:
150G CXP MPO 100m
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
0-70
Data Rate:
150 Gb/s
Distance:
100m
Wavelength:
850nm
Connector:
MPO

contact now

product details

Product Description：

Distance:100 m
Data Rate (max):150 Gb/s
Protocol:10x Fibre Channel Compatible 10 Gigabit Ethernet Compatible 40G Ethernet Compatible 100G Ethernet Compliant IB QDR Compliant IB SDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band

Product Feature：

12-channel full-duplex transceiver module
Hot Pluggable CXP footprint
Maximum link length of 100m on OM3 Multimode Fiber (MMF)
Multirate capability: 1.06Gb/s to 12.5b/s per channel
Unretimed CPPI electrical interface
Requires 3.3V power supply only
Low power dissipation: <3.5W
Reliable VCSEL array technology
Digital Diagnostics including Tx and Rx optical power monitoring
RoHS-6 Compliant (lead-free)
Commercial operating case temperature range: 0°C to 70°C
