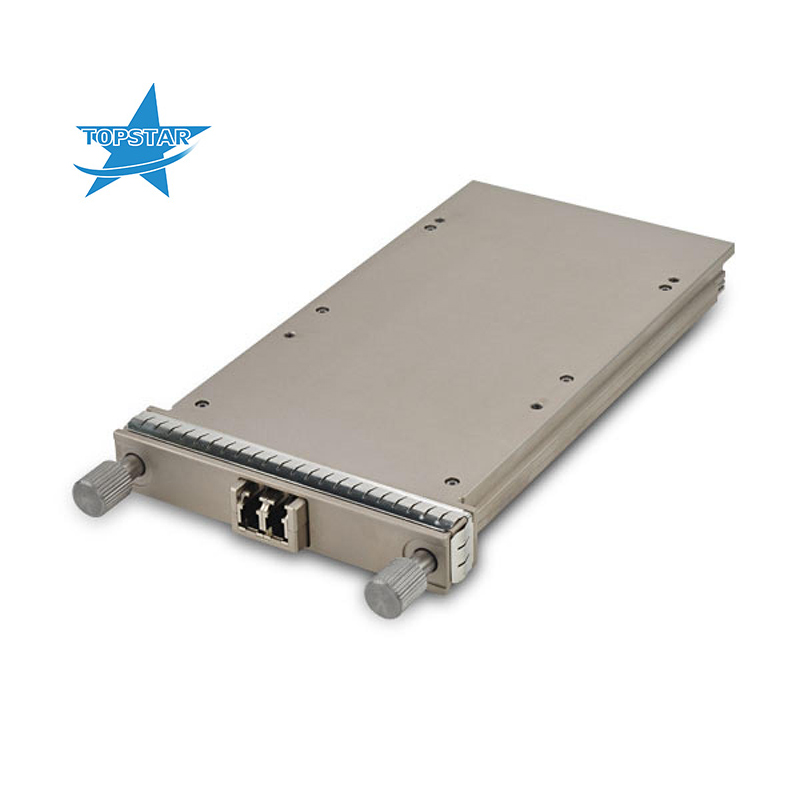

Compatible Finisar FTLC1183SDNx 100GBASE-LR4 and OTN Multirate 10km Gen2 CFP Optical Transceiver

item no.:
100G CFP LC 10km
brand:
Finisar
Warranty:
3 Years
Condition:
New
Temperature:
0-70
Data Rate:
112 Gb/s
Distance:
10km
Wavelength:
1310nm
Connector:
LC/SC

contact now

product details

Description：

Distance:10 km
Data Rate (max):112 Gb/s
Protocol:OTN OTU4 Compliant 100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC/SC
Wavelength:1310nm Band

Feature:

Hot-pluggable CFP form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rate
Power dissipation <16W
RoHS-6 compliant (lead-free)
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x28Gb/s DFB-based LAN-WDM transmitter
10x10G MLD electrical interface
Duplex SC or LC receptacles
MDIO management interface
Commercial case temperature: 0°C to 70°C
