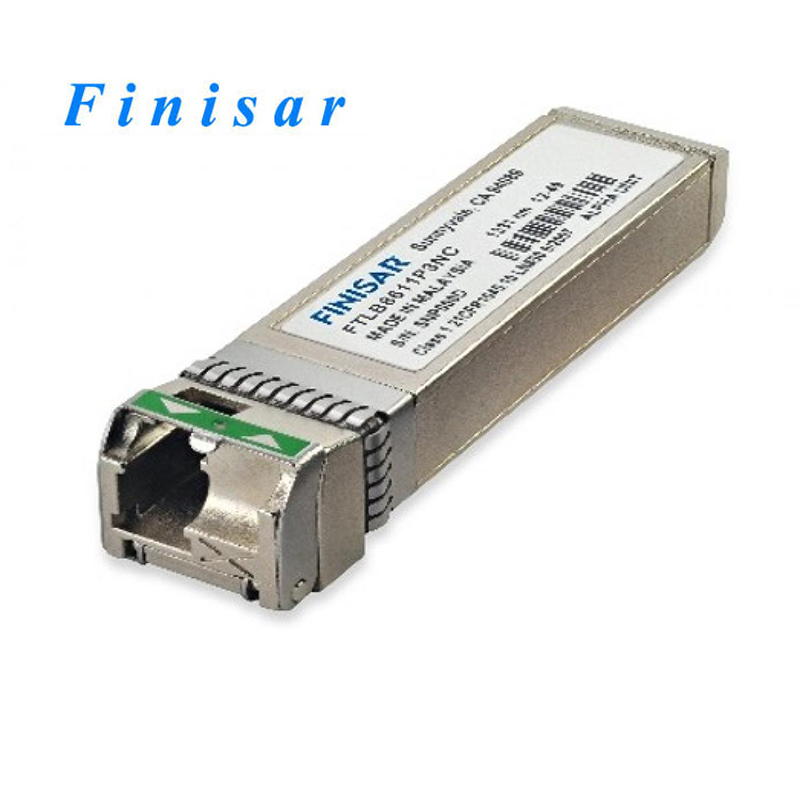

Compatible Finisar FTLB8611P3xC 10Gb/s Bidirectional Dual-Band DWDM 20km Multi-Rate Tunable SFP+ (Bidi T-SFP+) Optical Transceiver

item no.:
10G BIDI SFP+ LC 20k
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
-5-85
Data Rate:
11.3 Gb/s
Distance:
20km
Wavelength:
C-Band DWDM Tunable
Connector:
LC

contact now

product details

Product Descirption：

Distance:20 km
Data Rate (max):11.3 Gb/s
Protocol:10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compliant
Low End Case Temperature (°C):-5
High End Case Temperature (°C):85
Diagnostics:Digital
Transmitter:Tunable + InP MZM
Receiver:Limiting APD
Voltage Supply:3.3
Connector:LC
Wavelength:C-Band DWDM Tunable

Product Feature：

Hot-pluggable SFP+ footprint
Supports 1.2 to 11.3 Gb/s
Up to 20km link length
Bidirectional dual-band DWDM with upstream and downstream channels fitting into a 100GHz band
Full C-band tunable with 40 bidirectional Point-to-Point links
Case temperature range: -5°C to 70°C (FTLB8611P3CC); Cold start at -40°C
Case temperature range: -5°C to 85°C (FTLB8611P3NC); Cold start at -40°C
Single 3.3V power supply
Limiting electrical interface receiver
Single LC connector for Bi-directional link
Self-wavelength tuning with T2DOCTM and FlextuneTM technologies
Built-in digital diagnostic functions
RoHS-6 compliant (lead-free)

Products series:

Topstar are one of the leading Manufacturers and Supplier of Fiber Optical transceivers in Shenzhen. Our main core business as below:

Original SFP module:We are a professional supplier of original (Finisar/ Cisco/ Brocade/ Huawei/ Avago/ Source/ WTD/ JDSU/ INTEL, etc) sfp module, more than 200,000pcs inventory per month in warehouse satisfy your one-stand demand.
