Finisar FTLB8611P3CC FTLB8611P3NC is 10G DWDM 15xx.xxnm SFP+, the Extended temperature range is -5°C to 70°C, with 1 year warranty. Check datasheet, price and details on www.opticalmodulemanufacturers.com.
item no.:
FTLB8611P3xCbrand:
Finisarshipping port:
ShenzhenWarranty:
1 YearCondition:
GoodTemperature:
-5°C to 70°CData Rate:
10GDistance:
20KMWavelength:
C-Band DWDM TunableConnector:
LC

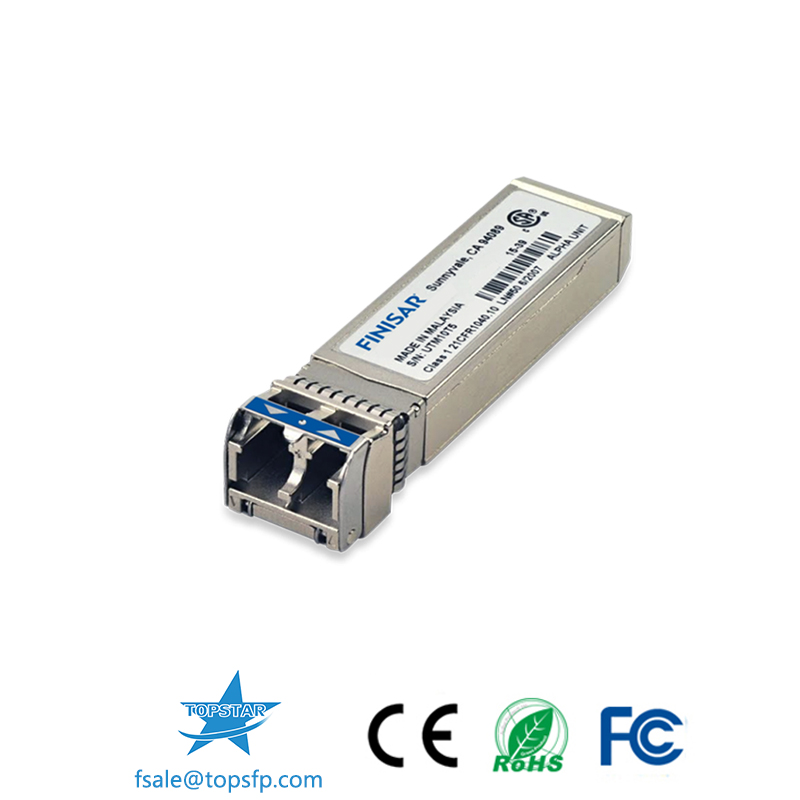

Finisar FTLB8611P3CC FTLB8611P3NC 10Gb/s Dual-Band DWDM 20km 15xx.xxnm SFP+
Finisar FTLB8611P3CC FTLB8611P3NC is the 10G DWDM SFP+ Transceiver Module. It can be used in Data Center, Enterprise switch line card applications, Storage, IP network and LAN.
Features
Part number | Finisar FTLB8611P3CC FTLB8611P3NC |
Data Rate | 10G |
Wavelength | C-Band DWDM Tunable |
Distance | 20KM |
Fiber Type | DWDM SFP |
Connector | LC |
Warranty | 1-year |
Form Factor | SFP+ |
Temperature |
-5°C to 70°C |
Power Supply | 3.3V |
Package | 10pc/CT |
Details
Finisar’s FTLB8611P3CC / FTLB8611P3NC transceivers are Enhanced Small Form Factor Pluggable Tunable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 20km of G.652 single mode fiber. These transceivers are based on Finisar’s novel dual-band bidirectional DWDM architecture that fits one pair of downstream and upstream channels into a 100GHz band. They are compliant with SFF-84311, SFF-84322 , SFF-86908, and support SONET OC-192, SDH STM-64, 1GE, 10G Ethernet, CPRI and OTU2 over 20km fiber. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84723. The optical transceiver is compliant per Directive 2011/65/EU.
Applications
DWDM 20km point to point links:
10Gb/s SONET/SDH
1GE, 10G Ethernet
2.457 Gb/s, 3.072Gb/s, 4.915 Gb/s, 6.144 Gb/s, 9.8304 Gb/s CPRI
ITU-T G.709
