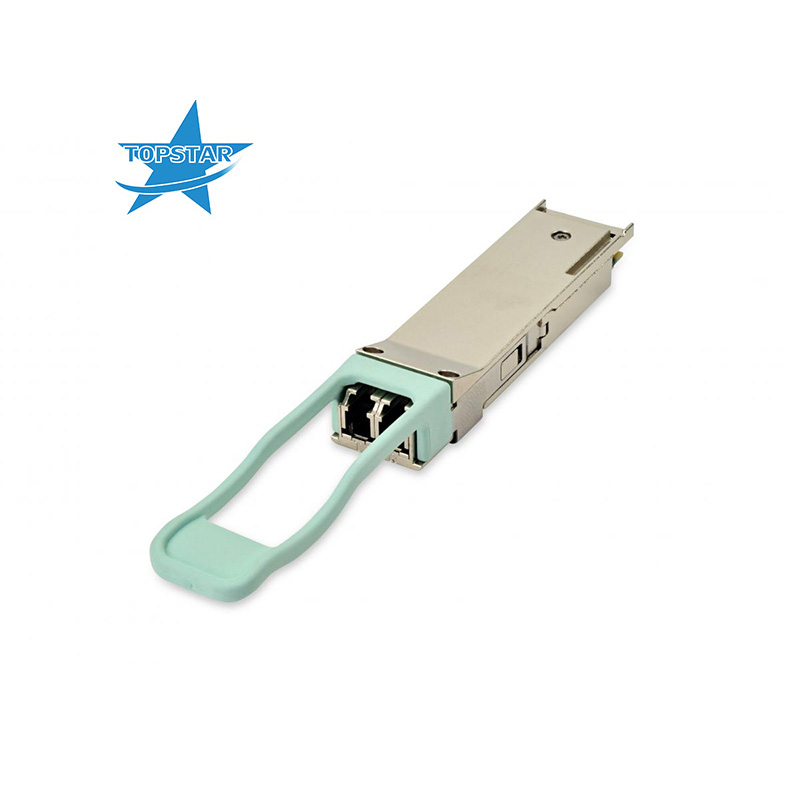

Compatible Finisar FTL4C3QE1C 40G Ethernet LM4 1km Universal Duplex Single Mode and Multimode QSFP+ Optical Transceiver

Compatible  Finisar FTL4C3QE1C 40G Ethernet LM4 1km Universal Duplex Single Mode and Multimode QSFP+ Optical Transceiver

  • item no.:

    40G QSFP LC 1km
  • brand:

    Finisar
  • Warranty:

    1 Year
  • Condition:

    New
  • Temperature:

    0-70
  • Data Rate:

    41.2 Gb/s
  • Distance:

    1 km
  • Wavelength:

    1310nm
  • Connector:

    LC
product details

Product Description:


Distance:1 km
Data Rate (max):41.2 Gb/s
Protocol:40G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:N/A
Transmitter:4x DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature:


Hot-pluggable QSFP+ form factor
Operates over duplex multimode and single mode fiber with dual LC receptacles
Supports 41.2 Gb/s aggregate bit rate
Power dissipation <3.5W
Commercial operating case temperature range 0°C to 70°C
Maximum link length of 140m on OM3, 160m on OM4, and 1km on SMF
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Built-in digital diagnostic functions; including Tx/Rx power monitoring
RoHS-6 compliant
