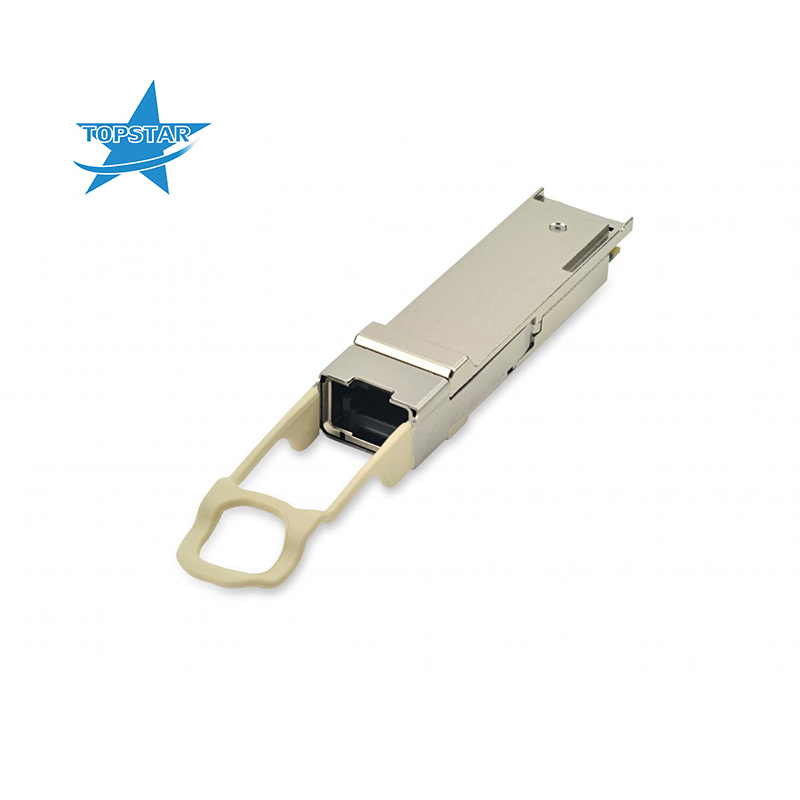

Compatible Finisar FTL414QB2C 56G InfiniBand FDR/SAS 3.0/40G Ethernet 60m QSFP+ Optical Transceiver

Compatible  Finisar FTL414QB2C 56G InfiniBand FDR/SAS 3.0/40G Ethernet 60m QSFP+ Optical Transceiver

  • item no.:

    56G FDR/SAS 3.0/40G
  • brand:

    Finisar
  • Warranty:

    3 Years
  • Condition:

    New
  • Temperature:

    0-70
  • Data Rate:

    56 Gb/s
  • Distance:

    60 m
  • Wavelength:

    MPO
  • Connector:

    850nm
product details

Product Description:


Distance:60 m
Data Rate (max):56 Gb/s
Protocol:10x Fibre Channel Compliant 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:N/A
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band


Product Feature:


Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 60m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
Up to 14.025Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1.5W
Reliable VCSEL array technology
Extended operating case temperature range 0°C to 70°C
Single 1x12 MPO receptacle
RoHS-6 compliant
