read moreFinisar’s FTL410QE3C QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA1,2 and IEEE 802.3ba 40GBASE-SR43 and breakout to 4 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring. The optical transceiver is compliant per the RoHS Directive 2011/65/EU4. See Finisar Application Note AN-2038 for more details5.
item no.:
FTL410QE3Cbrand:
Finisarpayment:
EXWWarranty:
1 YearTemperature:
0℃~70℃Data Rate:
40GDistance:
150mWavelength:
850nmConnector:
MPO

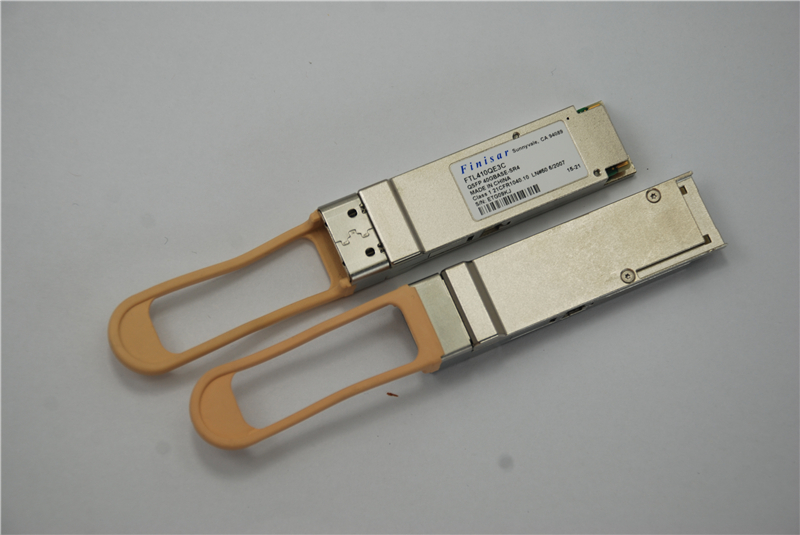

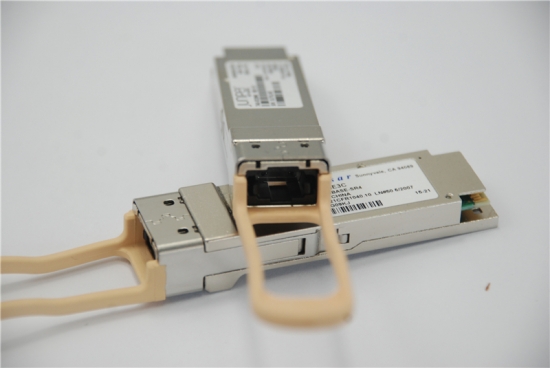

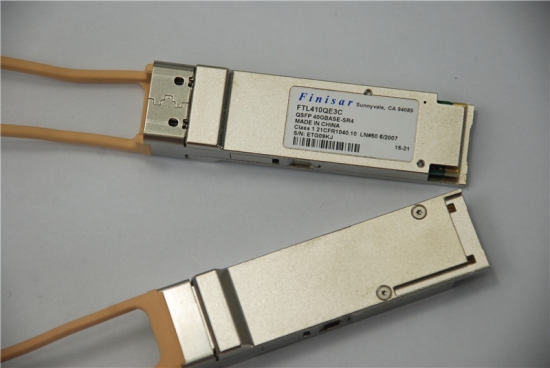

Finisar FTL410QE3C 40BASE-SR4 OM4 150m QSFP+ QSFP28 MSA Gen3 Transceiver
Features
Four-channel full-duplex transceiver module
Hot Pluggable QSFP+ form factor
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Max power dissipation <1.2W
Reliable VCSEL array technology
Built-in digital diagnostic functions, including optical power monitoring
Commercial operating case temperature range: 0ºC to 70ºC
Single 1x12 MPO receptacle
RoHS-6 Compliant
Applications
40GBASE-SR4 40G Ethernet
Breakout to 4 x 10GBASE-SR Ethernet
Proprietary interconnections
