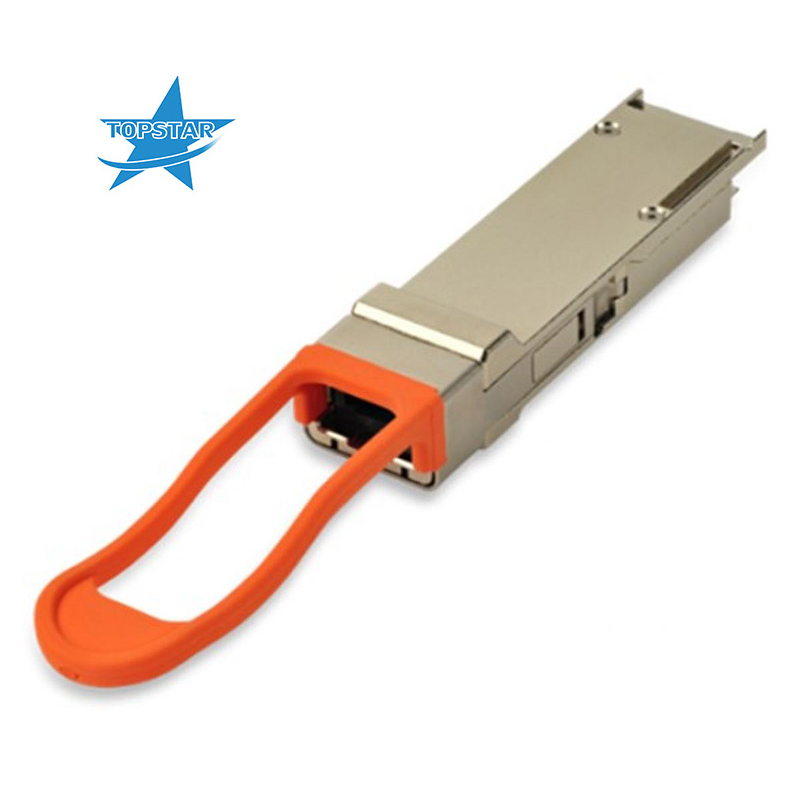

Compatible Finisar FTL410QD4C 40GBASE-SR4/10GBASE-SR 300m Gen4 QSFP+ Optical Transceiver

item no.:
40G-SR4/10G-SR QSFP
brand:
Finisar
Warranty:
3 Years
Condition:
New
Temperature:
0-70
Data Rate:
41.2 Gb/s
Distance:
300m
Wavelength:
850nm
Connector:
MPO (MTP12)

contact now

product details

Product Description:

Distance:300 m
Data Rate (max):41.2 Gb/s
Protocol:10x Fibre Channel Compliant 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP12)
Wavelength:850nm Band

Product Feature：

Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1W
Reliable VCSEL array technology
Built-in digital diagnostic functions, including Tx and Rx power monitoring
Commercial operating case temperature range 0°C to 70°C
Single 1x12 MPO receptacle
RoHS-6 compliant
