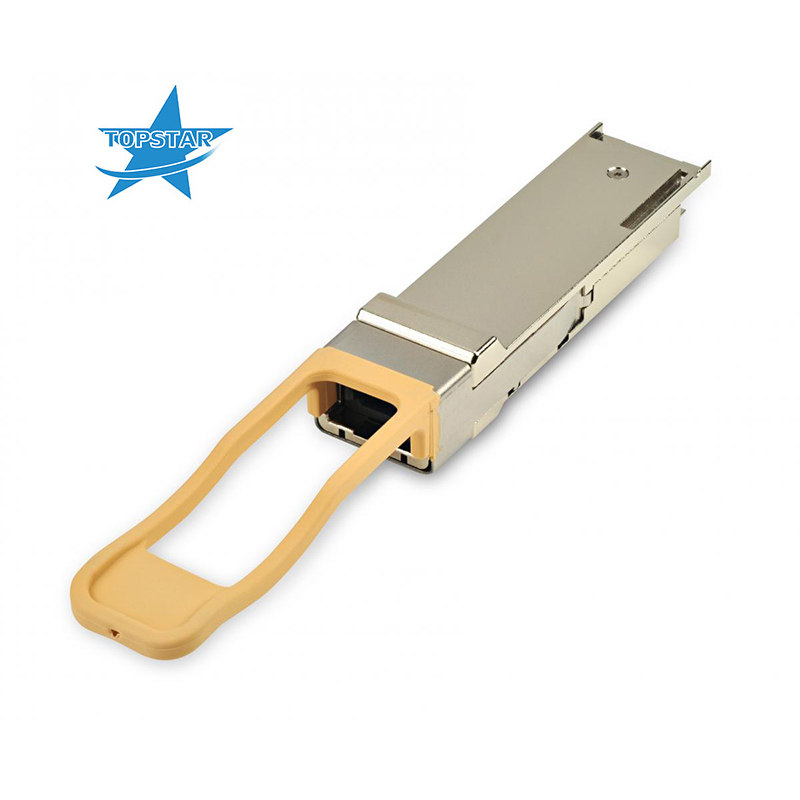

read moreCompatible Finisar FTL410QD3C 40GBASE-SR4/10GBASE-SR 300m Gen3 QSFP+ Optical Transceiver
item no.:
40G-SR4/10G-SR QSFPbrand:
FinisarWarranty:
3 YearsCondition:
NewTemperature:
0-70Data Rate:
41.2 Gb/sDistance:
300 mWavelength:
850nmConnector:
MPO (MTP12)
Product Description:
Distance:300 m
Data Rate (max):41.2 Gb/s
Protocol:10x Fibre Channel Compliant 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP12)
Wavelength:850nm Band
Product Feature:
Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1.2W
Reliable VCSEL array technology
Real-time digital diagnostic functions, including Tx and Rx power monitoring
Commercial operating case temperature range 0°C to 70°C
Single 1x12 MPO receptacle
RoHS-6 compliant
