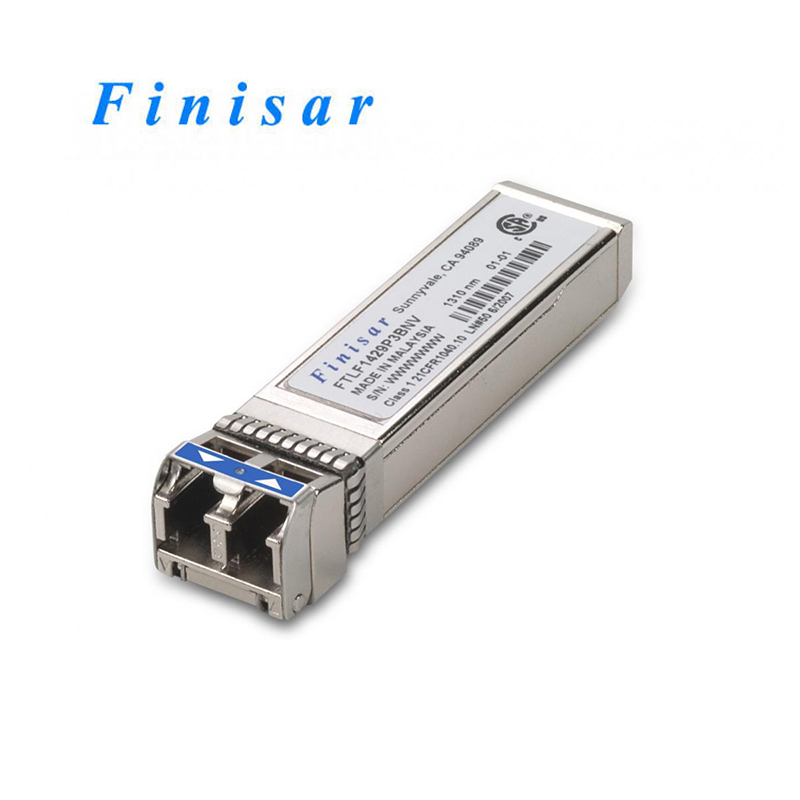

Compatible Finisal FTLF8528P3BCV 8G Fibre Channel (8GFC) 150m SFP+ Optical Transceiver
item no.:
8G SFP+ LC 150mbrand:
FinisarWarranty:
1 YearCondition:
NewTemperature:
-5-85Data Rate:
8.5 Gb/sDistance:
100 mWavelength:
850nmConnector:
LC
Product Description；
Distance:100 m
Data Rate (max):8.5 Gb/s
Protocol:1x Fibre Channel Compatible 2x Fibre Channel Compliant 4x Fibre Channel Compliant 8x Fibre Channel Compliant
Low End Case Temperature (°C):-5
High End Case Temperature (°C):85
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:850nm Band
Product Feature：
Up to 8.5 Gb/s bi-directional data links
Hot-pluggable SFP+ footprint
Built-in digital diagnostic functions
850nm Oxide VCSEL laser transmitter
Duplex LC connector
RoHS compliant and Lead Free
50m on 50/125μm MMF
150m on high-bandwidth
50/125um (OM3) MMF
Metal enclosure, for lower EMI
Single 3.3V power supply
<0.5W power dissipation
Extended operating temperature range: -5°C to 85°C
