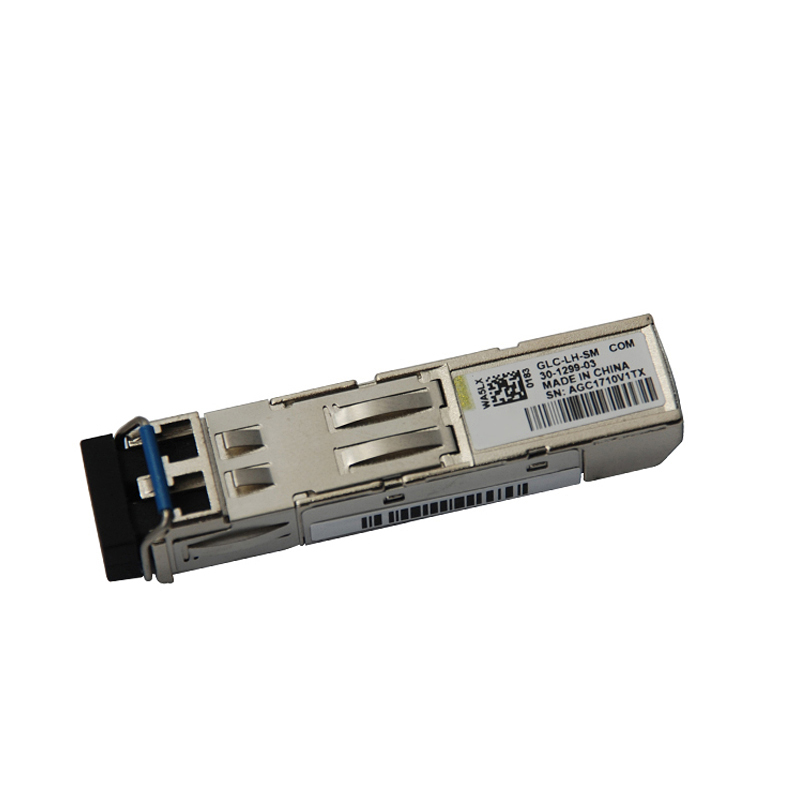

read moreGLC-LH-SMD 1000BASE-LX/LH SFP is made for Both Multimode and Single-Mode Fibers.
item no.:
1000BASELX/LH (GLC-LWarranty:
1 YearCondition:
NewTemperature:
0-70Data Rate:
1000BASEDistance:
550m/10kmWavelength:
1310nmConnector:
LC
Product |
Wavelen gth (nm) |
Fiber Type |
Core Size (μm) |
Modal Bandwidth (MHz* Km)*** |
Operating Distance (m) |
1000BASE-SX |
850 |
MMF |
62.5 |
160 (FDDI-grade) |
220 (722 ft) |
62.5 |
200 (OM1) |
275 (902 ft) |
|||
50 |
400 (400/400) |
500 (1,640 ft) |
|||
50 |
500 (OM2) |
550 (1,804 ft) |
|||
50 |
2000 (OM3) |
1000 (3281 ft) |
|||
1000BASE-LX/LH |
1310 |
MMF* |
62.5 |
500 |
550 (1,804 ft) |
50 |
400 |
550 (1,804 ft) |
|||
50 |
500 |
550 (1,804 ft) |
|||
SMF |
-** |
- |
10,000 (32,821 ft) |
||
1000BASE-EX |
1310 |
SMF |
-** |
- |
40,000 (131,234 ft) |
1000BASE-ZX |
1550 |
SMF |
- |
- |
Approximately 70 km depending on link loss |
1000BASE-BX-U |
1310 |
SMF |
-** |
- |
10,000 (32,821 ft) |
1000BASE-BX-D |
1490 |
SMF |
-** |
- |
10,000 (32,821 ft) |
GLC-BX40-D-I |
1550 |
SMF |
-** |
- |
40,000 (131,234 ft) |
GLC-BX40-DA-I |
1490 |
SMF |
-** |
- |
40,000 (131,234 ft) |
GLC-BX40-U-I |
1310 |
SMF |
-** |
- |
40,000 (131,234 ft) |
GLC-BX80-D-I |
1570 |
SMF |
-** |
- |
80,000 (262,467 ft) |
