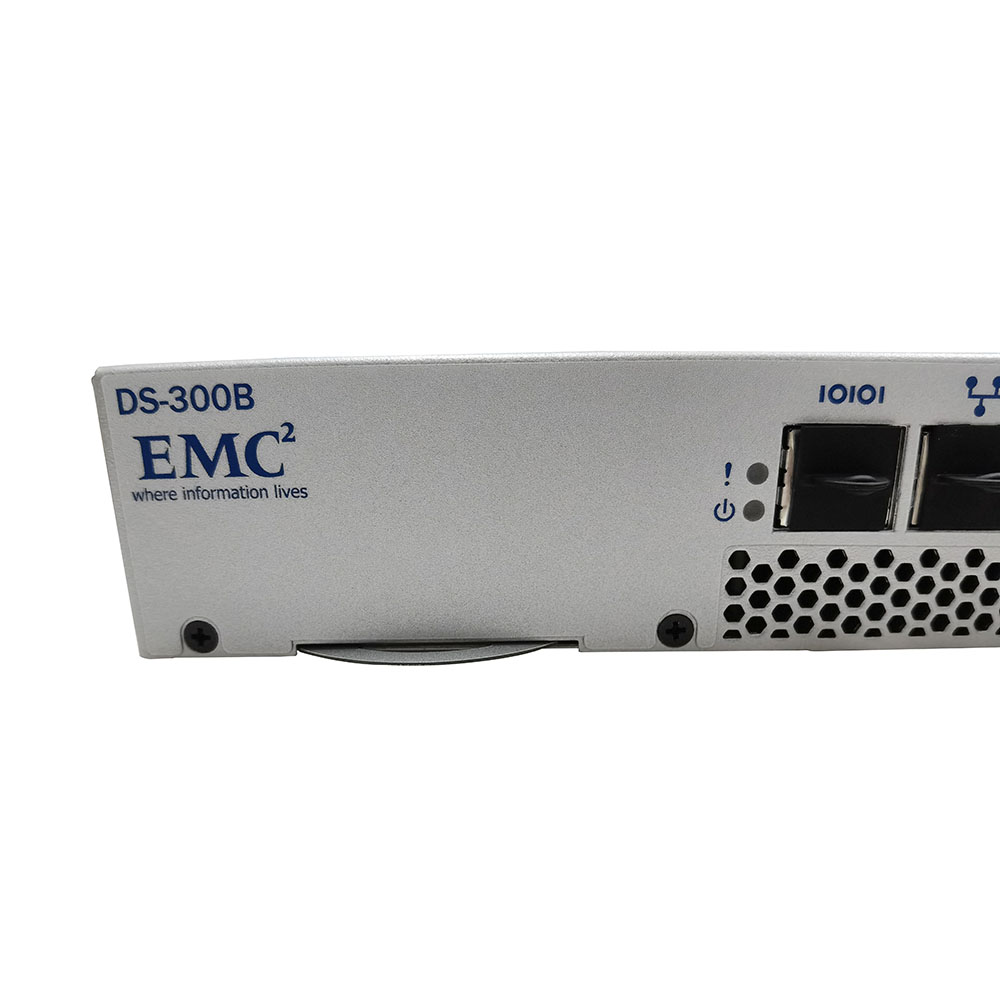

24 Port 8G EMC Brocade SAN Switch DS-300B For Connectrix B

This Brocade switch is manufactured for EMC and is known as the EMC Connectrix DS-300B. Good port density and scalability for a mid-range enterprise SAN. Minimum ports are 8 and can be upgraded 8 at a time.

  • item no.:

    PT-12OM4MTP-C5
  • brand:

    Top-Trans
  • Warranty:

    1 Year
  • Condition:

    New
  • Distance:

    5m
product details



DS-300B 8G SEC SAN Switch Brocade EMC 24 Port For Connectrix B


 EMC DS-300B Flexible  Entry-Level SAN Switch


This Brocade switch is manufactured for EMC and is known as the EMC Connectrix DS-300B. Good port density and scalability for a mid-range enterprise SAN. Minimum ports are 8 and can be upgraded 8 at a time. This allows you to start smaller and at a cost-effective price point and build out as needed.This switch is becoming more affordable and is flexible enough for entry-level SANs or as core to edge in SAN environments.


Main features Systems Architecture
Power consumption 48 watts nominal, 57 watts maximum
Input voltage 85 - 264 VAC, universal
Maximum output from the power supply 75 watts
Scalibility On-demand scaling of 8 to 24 8 Gbps ports
ISL Trunking up to eight 8Gb/s ports per ISL Trunk, for a single Trunk up to 68 Gb/s
USB USB port that provides storage for firmware updates, output of the support save command and storage for configuration uploads and download
Vibration RJ45 Ethernet management port that in conjunction with EZSwitchSetup, supports switch IP address discovery and configuration




The DS-300B provides the following features:
◆ 1U chassis The chassis can be installed as a standalone unit or mounted in a standard Electronic Industries Association (EIA) 19 in. (48.26 cm)
     cabinet.
◆ One built-in fixed power unit (not a FRU) Three built-in fans (there are no fan FRUs) The DS-300B is cooled by a 2-1 redundant fan configuration,which means that it can sustain a single fan failure and continueto function properly.
◆ On-demand scaling of 8 to 24 8 Gbps ports
◆ GoldenEye-2 ASIC technology supporting 1, 2, 4 and 8 Gbps auto-sensing Fibre Channel ports
◆ A flexible design that enables the DS-300B to function as either a full-functioned switch or an NPIV access gateway
◆ Support of the EZSwitchSetup wizard for setup and basic configuration
◆ A single motherboard design with a 667 MHz PowerPC 440EPx Reduced Instruction Set Computer (RISC) CPU with integrated peripherals
◆ Inter-Switch-Link Trunking (licensable) which enables up to eight ports (at 1G, 2G, 4G, or 8G speeds) between a pair of switches to be combined to form a single, logical ISL switch with a speed of up to 64 Gbits/sec (128 Gbits/sec full duplex) for optimal bandwidth utilization and load balancing
◆ Dynamic Path Selection (DPS) which optimizes fabric-wide performance and load balancing by automatically routing data to the most efficient available path in the fabric



FAQ

Q1. What transceiver module can be used on this EMC DC-300B switch?

A1: 57-1000014-01 57-1000012-01 57-1000117-01 etc 2G 4G  8G 16G whole series SFP optical modules can be used;



Q2. How long can you dispatch the cargoes

A2: Generally 2 working days if in stock, if no stock, time is negotiable;


Q3. What else EMC SAN switch you can provide?

A3: We can provide whole series EMC 8G 16G 32G switch as requested;
