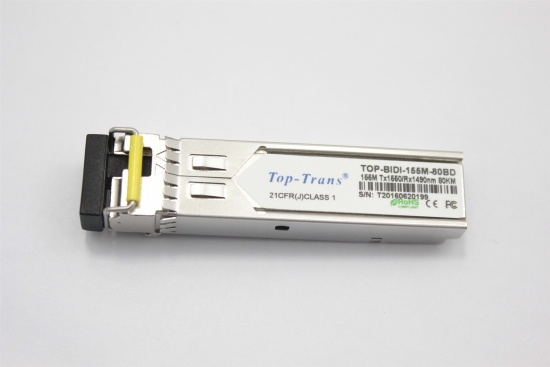

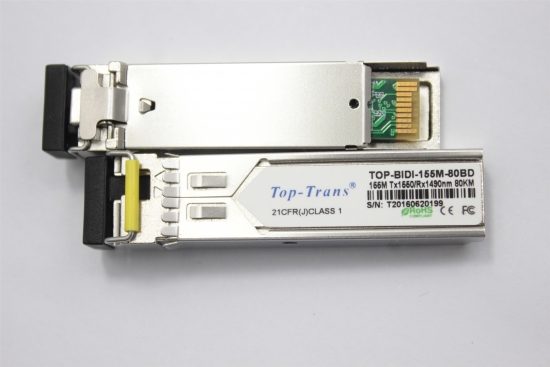

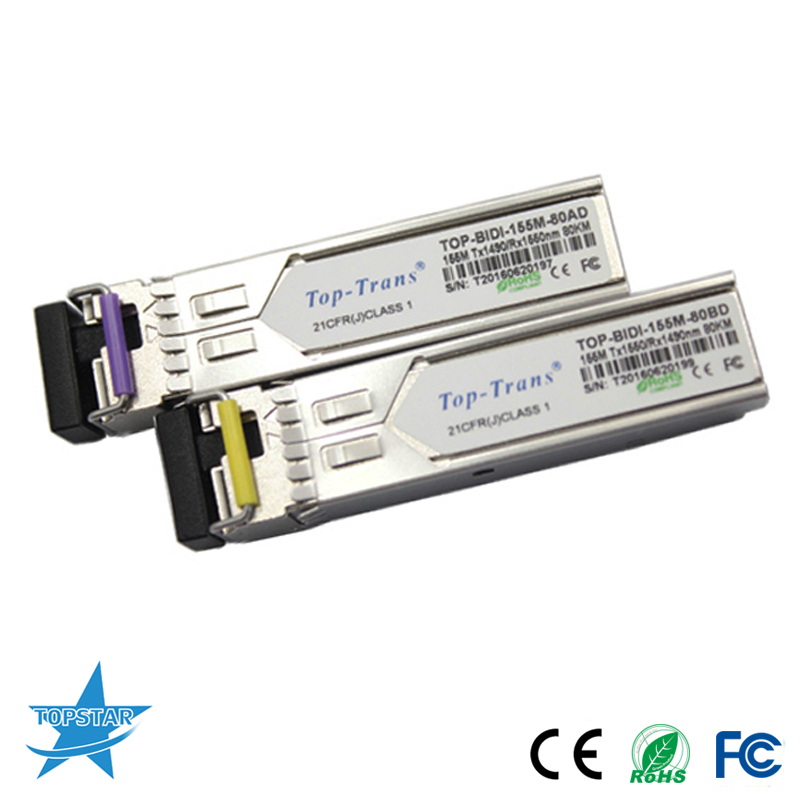

155Mbps BIDI SFP 1490/1550nm 80km Long Range Small Form-factor Pluggable Fiber Transceiver Moudule

TOP-BIDI-155M-80AD/BD 155M WDM 1490/1550nm 80km SFP Transceivers are designed for optical interfaces for data  communications with single mode fiber(SMF). The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecom applications.




  • item no.:

    TOP-BIDI-155M-80A/BD
  • lead time:

    2-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    ex-w
  • Warranty:

    3 Years
  • Condition:

    New
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    155M
  • Distance:

    80km
  • Wavelength:

    1490/1550nm
  • Connector:

    LC
product details


155Mbps BIDI SFP 1490/1550nm 80km Long Range Small Form-factor Pluggable Fiber Transceiver Moudule


Fiber Channel Transceiver Single Core DDM LC 1490/1550nm 155M SFP BiDi Module 80km




PRODUCT FEATURES

Up to 155Mb/s data links

DFB laser transmitter

PIN photo-detector

Up to 80KM on 9/125μm SMF

Hot-pluggable SFP footprint

BIDILC/UPC type pluggable optical interface

Low power dissipation

Metal enclosure, for lower EMI

RoHS compliant and lead-free

Single+3.3V power supply

Support Digital Diagnostic Monitoring interface

Compliant with SFF-8472

Case operating temperature Commercial:0°C to +70°C Extended:-10°C to +80°C Industrial:-40°C to+85°C



APPLICATIONS

Switch to Switch Interface

Fast Ethernet

Switched Backplane Applications

Router/Server Interface

Other Optical Links





Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered
