10M AOC-Q-Q-100G-10M Arista Compatible 100G QSFP28 Active Optical Cable

Active Optical Cable (AOC) is a cabling technology that accepts same electrical inputs as a traditional copper cable, but uses optical fiber “between the connectors”. AOC uses electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable without sacrificing compatibility with standard electrical interfaces.

item no.:
10M AOC-Q-Q-100G-10M
brand:
Top-Trans
Warranty:
1 Year
Condition:
New
Data Rate:
100G
Distance:
10m

contact now

product details

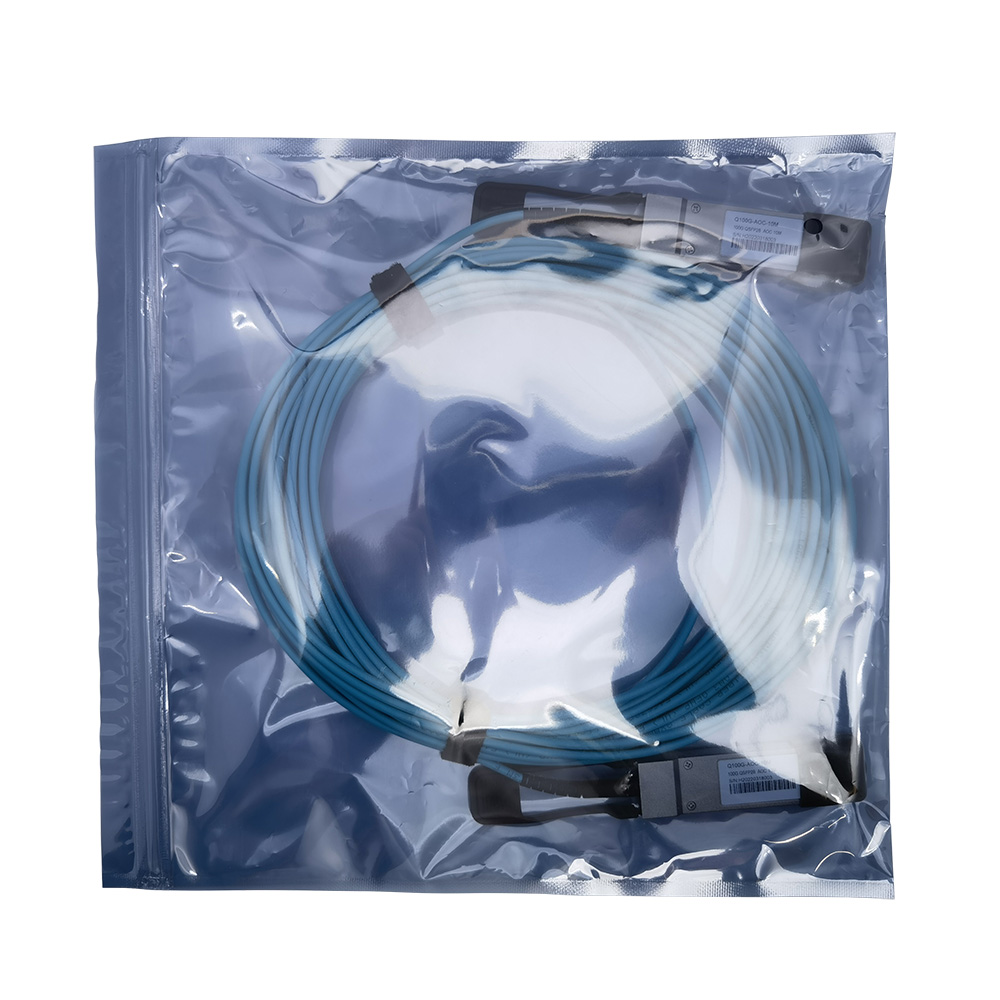

10M AOC-Q-Q-100G-10M Arista Compatible 100G QSFP28 Active Optical Cable

The Arista AOC-Q-Q-100G-10M Compatible QSFP28 Active Optical Cables are direct-attach fiber assemblies with QSFP28 connectors and operate over Multi-Mode Fiber (MMF). This AOC is compliant with QSFP28 MSA and RoHS-6 standards. It provides a cost-efficient solution as compared to using discrete optical transceivers and optical patch cables and is suitable for 100Gbps connections within racks and across adjacent racks.

Features
• Functionally identical to Arista AOC-Q-Q-100G-10M100G QSFP28 Active Optical Cable
• Four-channel full-duplex active optical cable
• Multirate capability: 10Gb/s to 25Gb/s per channel
• QSFP28 high-density form factor
• Low power dissipation: <3.5W per cable end
• Low weight for high-port-count architectures
• Allow different equipment connect by configuring each end of the AOC cable

Applications:

Infiniband 4xEDR, 4xFDR, 4xQDR
10/25/40/100G Ethernet
4G/8G/16G/32G Fibre Channel
SAS3
High Performance Computing Clusters

Max Data Rate	100Gbps
Minimum Bend Radius	7.5mm
Jacket Material	OFNP
Cable Type	Optical Cable
Polish Type	UPC to UPC
Minimum Bend Radius	7.5mm
CDR	Support
MTBF	≈50 Million Hours
Power Consumption	<3.5W
Power supply	3.3V
Protocols	100G Ethernet or InfiniBand 4xFDR/EDR
